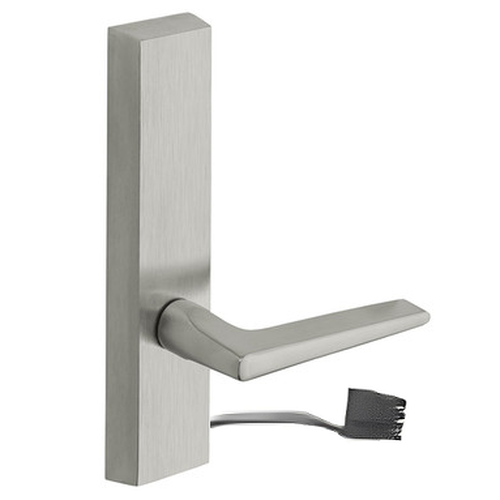

Sargent 773-8 ETF Fail Safe Electrified Exit Trim, For 8500, 8800, NB8700 Series
In Stock
$836.33
Sargent 773-8 ETF Grade 1 Electrified Exit Device Trim, Fail Safe, Power Off, Unlocks Lever, For 8500, 8800, NB8700 Series Devices, F Lever, Satin Chrome
Function: Electrified ET Trim - Fail Safe
Lever is unlocked when power is off - no cylinder override
For Use With: 8500, 8800 and NB8700 Series Devices - 8573, SP8773, PP8773, PR8773, NB8773, 8873
The 700 Series trims are through-bolted to the chassis for greater security and durability.
• Requires a McKINNEY QC8 Hinge for EcoFlex® ET Trims and/or 54- option
• Features EcoFlex®
• Voltage: Operates from 12-24 VDC
• Actuator Draw = 400mA inrush / 15mA continuous @ 12VDC / 24VDC
• Operating Temp.: Max. 151°F (66°C) Min -31°F (-35°C).
• Full wave rectification installed inside the ET Control
• UL and cUL listed for use on fire doors

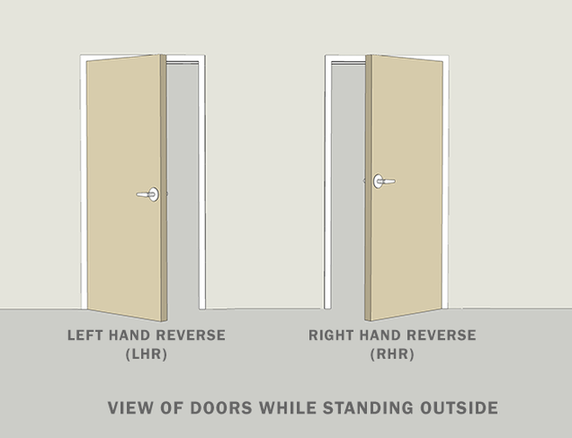

• Field reversible
• EcoFlex® Trim is specified by the product function
Note: Repeated operation at voltage exceeding +/- 10% is not recommended
• Requires a McKINNEY QC8 Hinge for EcoFlex® ET Trims and/or 54- option
• Features EcoFlex®
• Voltage: Operates from 12-24 VDC
• Actuator Draw = 400mA inrush / 15mA continuous @ 12VDC / 24VDC
• Operating Temp.: Max. 151°F (66°C) Min -31°F (-35°C).
• Full wave rectification installed inside the ET Control
• UL and cUL listed for use on fire doors
• Field reversible
• EcoFlex® Trim is specified by the product function
Note: Repeated operation at voltage exceeding +/- 10% is not recommended
Lever Style: F Lever
Trim Style: ET
Trim Plate Width: 1-13/16 Inch
Trim Plate Height: 8-1/16 Inch
Product Projection: 3-9/16 Inch
Trim Plate Thickness: 13/16 Inch
Finishes: 26D - Satin Chrome, 10 - Satin Bronze Clear Coated, 4 - Satin Brass, 3 -Bright Brass, 10B - Dark Oxidized Satin Bronze Oil Rubbed, 26 - Bright Chrome
Model: Sargent 773-8 ETF 26D, 773-8 ETF 3, 773-8 ETF 4, 773-8 ETF 10, 773-8 ETF 10B, 773-8 ETF 26
