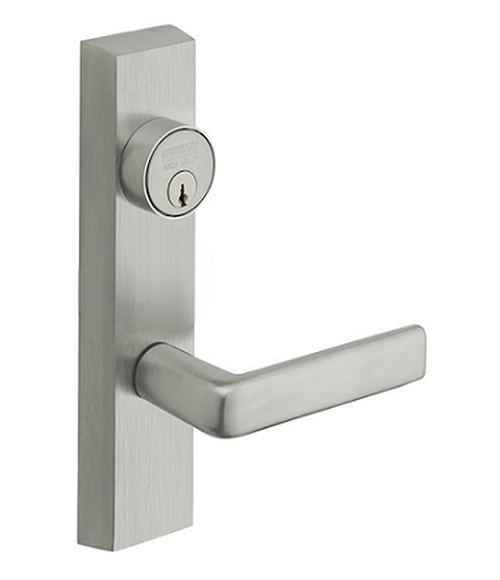

Sargent 744 ETE Night Latch Freewheeling Exit Trim, For Surface Vertical Rod and Mortise Devices

Sargent 744 ETE Grade 1 Exit Device Trim, Freewheeling Trim, Key Retracts Latch, For Surface Vertical Rod and Mortise
(8700, 8900 Series) Devices, Rim Cylinder for Rim Devices, 1-3/4 In. Mortise Cylinder for Mortise Devices, E Lever

The 700 Series trims are through-bolted to the chassis for greater security and durability.

Function: Nightlatch - ANSI No.03
Key retracts latch bolt

Cylinder Type: Rim for Rim Devices, 1-3/4" Mortise for Mortise Devices - LA Keyway

For Use With: 8700, 8900 Series Surface Vertical Rod/Mortise Devices - 8344, 12-8344, 8544, 8844, 12-8844, 8888, 12-8888, 8944, 12-8944

Freewheeling Trim: The lever rotates when the door is locked preventing excessive force from being applied to the horizontal lever

Lever Style: E Lever

Trim Style: ET

Trim Plate Width: 1-13/16 Inch

Trim Plate Height: 8-1/16 Inch

Product Projection: 3-9/16 Inch

Trim Plate Thickness: 13/16 Inch

Finishes: 26D - Satin Chrome, 10 - Satin Bronze Clear Coated, 4 - Satin Brass, 3 -Bright Brass, 10B - Dark Oxidized Satin Bronze Oil Rubbed, 26 - Bright Chrome

Model: Sargent 744 ETE RHRB 26D, 744 ETE LHRB 26D, 744 ETE RHRB 3, 744 ETE LHRB 3, 744 ETE RHRB 10, 744 ETE LHRB 10, 744 ETE RHRB 10B, 744 ETE LHRB 10B, 744 ETE RHRB 26, 744 ETE LHRB 26
