Sargent 743-8 ETB Classroom Freewheeling Exit Trim, For 8500, 8800, NB8700 Series

Sargent 743-8 ETB Grade 1 Exit Device Trim, Classroom Function, Freewheeling Trim, Key Outside Unlocks/Locks Trim,
For 8500, 8800 and NB8700 Series Devices, 1-1/8 In. Mortise Cylinder, B Lever, Satin Chrome

The 700 Series trims are through-bolted to the chassis for greater security and durability.

Function: Classroom - ANSI No.08
Key outside unlocks/Locks trim

Cylinder Type: 1-1/8" Mortise for Mortise Devices - LA Keyway

For Use With: 8500, 8800 Rim and NB8700 Series Devices - 8543, 8888, 12-8888, 8843, 12-8843,SP8743, PP8743, PR8743, NB8743

Freewheeling Trim: The lever rotates when the door is locked preventing excessive force from being applied to the horizontal lever

Lever Style: B Lever

Trim Style: ET

Lever Height: 3-1/8 Inch

Lever Length-Inches: 3-1/8 Inch

Trim Plate Width: 1-13/16 Inch

Trim Plate Height: 8-1/16 Inch

Product Projection: 3-9/16 Inch

Trim Plate Thickness: 13/16 Inch

Finishes: 26D - Satin Chrome, 10 - Satin Bronze Clear Coated, 4 - Satin Brass, 3 -Bright Brass, 10B - Dark Oxidized Satin Bronze Oil Rubbed, 26 - Bright Chrome

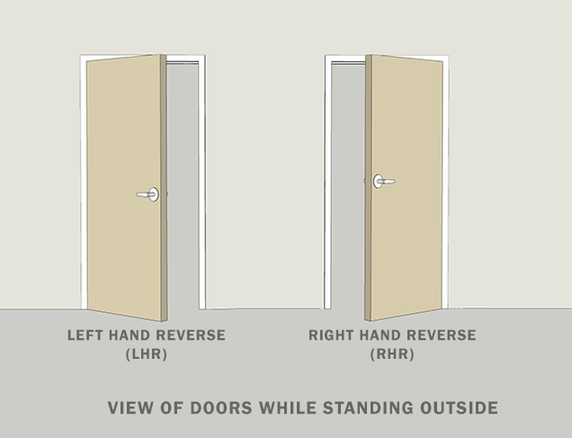

Model: Sargent 743-8 ETB RHRB 26D, 743-8 ETB LHRB 26D, 743-8 ETB RHRB 3, 743-8 ETB LHRB 3, 743-8 ETB RHRB 10, 743-8 ETB LHRB 10, 743-8 ETB RHRB 10B, 743-8 ETB LHRB 10B, 743-8 ETB RHRB 26, 743-8 ETB LHRB 26
