Sargent 743-4 ETL Classroom Freewheeling Exit Trim, For Concealed Vertical Rod Devices

Sargent 743-4 ETL Grade 1 Exit Device Trim, Classroom Function, Freewheeling Trim, Key Outside Unlocks/Locks Trim,
For Concealed Vertical Rod (8400, 8600 Series) Devices, 1-1/8 In. Mortise Cylinder, L Lever, Satin Chrome

The 700 Series trims are through-bolted to the chassis for greater security and durability.

Function: Classroom - ANSI No.08
Key outside unlocks/Locks trim

Cylinder Type: 1-1/8" Mortise for Mortise Devices - LA Keyway

For Use With: 8400, 8600 Series Concealed Vertical Rod Devices - 8443, 12-MD8443, WD8643, 12-WD8643, MD8643, 12-MD8643

Freewheeling Trim: The lever rotates when the door is locked preventing excessive force from being applied to the horizontal lever

Lever Style: L Lever

Trim Style: ET

Lever Height: 2-3/8 Inch

Lever Length-Inches: 4-1/2 Inch

Trim Plate Width: 1-13/16 Inch

Trim Plate Height: 8-1/16 Inch

Product Projection: 3-9/16 Inch

Trim Plate Thickness: 13/16 Inch

Finishes: 26D - Satin Chrome, 10 - Satin Bronze Clear Coated, 4 - Satin Brass, 3 -Bright Brass, 10B - Dark Oxidized Satin Bronze Oil Rubbed, 26 - Bright Chrome

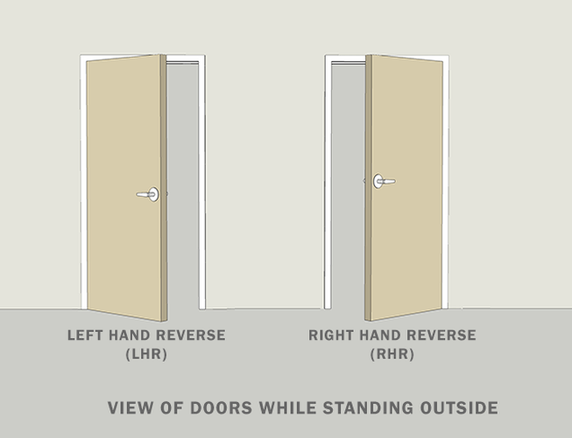

Model: Sargent 743-4 ETL RHRB 26D, 743-4 ETL LHRB 26D, 743-4 ETL RHRB 3, 743-4 ETL LHRB 3, 743-4 ETL RHRB 10, 743-4 ETL LHRB 10, 743-4 ETL RHRB 10B, 743-4 ETL LHRB 10B, 743-4 ETL RHRB 26, 743-4 ETL LHRB 26
