Sargent 740 ETL Dummy Freewheeling Exit Trim, For Rim, Surface Vertical Rod and Mortise Devices

Sargent 740 ETL Grade 1 Exit Device Trim, Dummy, Freewheeling Trim - No Outside Operation, For Rim, Surface Vertical Rod and Mortise Devices, L Lever

The 700 Series trims are through-bolted to the chassis for greater security and durability.

Function: Dummy - ANSI No.02
Freewheeling Trim - No outside operation

For Use With: 8340, 12-8340, 8540, 8740, 12-8740, SP8740, PP8740, PR8740 8840, 12-8840, 8888, 12-8888, 8940,12-8940, NB8740

Freewheeling Trim: The lever rotates when the door is locked preventing excessive force from being applied to the horizontal lever

Lever Style: L Lever

Trim Style: ET

Lever Height: 2-3/8 Inch

Trim Plate Width: 1-13/16 Inch

Trim Plate Height: 8-1/16 Inch

Product Projection: 3-9/16 Inch

Lever Length-Inches: 4-1/2 Inch

Trim Plate Thickness: 13/16 Inch

Finishes: 26D - Satin Chrome, 10 - Satin Bronze Clear Coated, 4 - Satin Brass, 3 -Bright Brass, 10B - Dark Oxidized Satin Bronze Oil Rubbed, 26 - Bright Chrome

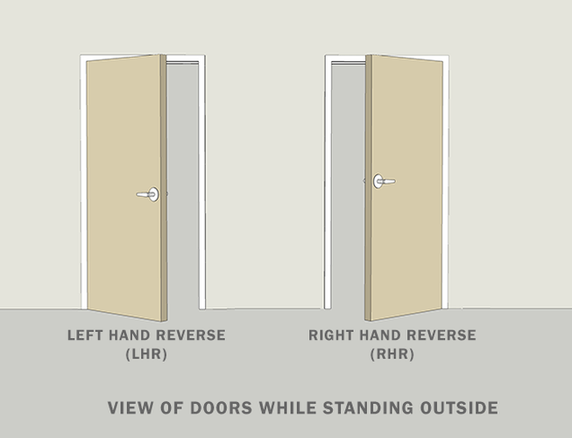

Model: Sargent 740 ETL RHRB 26D, 740 ETL LHRB 26D, 740 ETL RHRB 3, 740 ETL LHRB 3, 740 ETL RHRB 10, 740 ETL LHRB 10, 740 ETL RHRB 10B, 740 ETL LHRB 10B, 740 ETL RHRB 26, 740 ETL LHRB 26
