Sargent 715 ETA Passage Exit Trim, For Surface Vertical Rod and Mortise Devices

Sargent 715 ETA Grade 1 Exit Device Trim, Passage Function, For Surface Vertical Rod and Mortise (8300, 8700, 8900, 9700, 9800, 9900 Series) Devices, A Lever

The 700 Series trims are through-bolted to the chassis for greater security and durability.

Function: Passage - ANSI No.14

Lever operable always, no cylinder

For Use With: 8300, 8700, 8900, 9700, 9800, 9900 Series Surface Vertical Rod/Mortise Devices - 8315, 12-8315, 8715, 12-8715, 8915, 12-8915, 9715, 12-9715, 9815, 12-9815, 9915, 12-9915

Lever Style: A Lever

Trim Style: ET

Trim Plate Width: 1-13/16 Inch

Trim Plate Height: 8-1/16 Inch

Product Projection: 3-9/16 Inch

Trim Plate Thickness: 13/16 Inch

Finishes: 26D - Satin Chrome, 10 - Satin Bronze Clear Coated, 4 - Satin Brass, 3 -Bright Brass, 10B - Dark Oxidized Satin Bronze Oil Rubbed, 26 - Bright Chrome

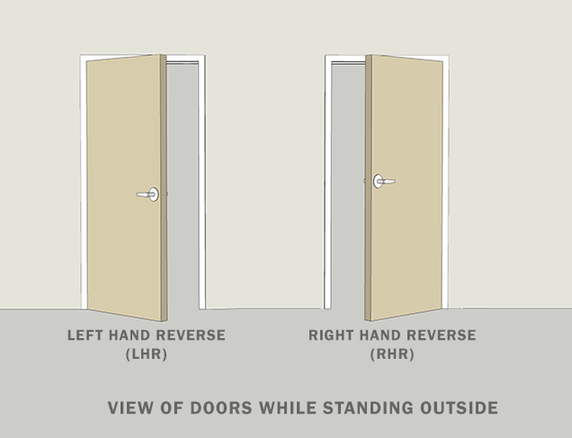

Model: Sargent 715 ETA RHRB 26D, 715 ETA LHRB 26D, 715 ETA RHRB 3, 715 ETA LHRB 3, 715 ETA RHRB 10, 715 ETA LHRB 10, 715 ETA RHRB 10B, 715 ETA LHRB 10B, 715 ETA RHRB 26, 715 ETA  LHRB 26
