Sargent 715-8 ETL Passage Exit Trim, For 8500, 8800 and NB8700 Series Devices

Sargent 715-8 ETL Grade 1 Exit Device Trim, Passage Function, For 8500, 8800 and NB8700 Series Devices, L Lever

The 700 Series trims are through-bolted to the chassis for greater security and durability.

Function: Passage - ANSI No.14
Lever operable always, no cylinder

For Use With: 8500, 8800 and NB8700 Series Devices - 8515, 8888, 12-8888, 8815, 12-8815, SP8715, PP8715, PR8715, NB8715

Lever Style: L Lever

Trim Style: ET

Lever Height: 2-3/8 Inch

Trim Plate Width: 1-13/16 Inch

Trim Plate Height: 8-1/16 Inch

Product Projection: 3-9/16 Inch

Lever Length-Inches: 4-1/2 Inch

Trim Plate Thickness: 13/16 Inch

Finishes: 26D - Satin Chrome, 10 - Satin Bronze Clear Coated, 4 - Satin Brass, 3 -Bright Brass, 10B - Dark Oxidized Satin Bronze Oil Rubbed, 26 - Bright Chrome

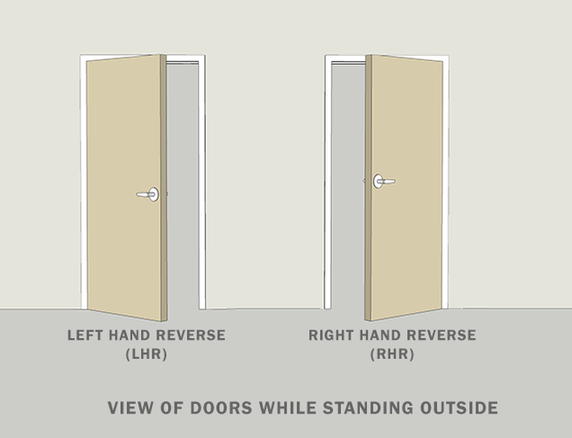

Model: Sargent 715-8 ETL RHRB 26D, 715-8 ETL LHRB 26D, 715-8 ETL RHRB 3, 715-8 ETL LHRB 3, 715-8 ETL RHRB 10, 715-8 ETL LHRB 10, 715-8 ETL RHRB 10B, 715-8 ETL LHRB 10B, 715-8 ETL RHRB 26, 715-8 ETL LHRB 26
