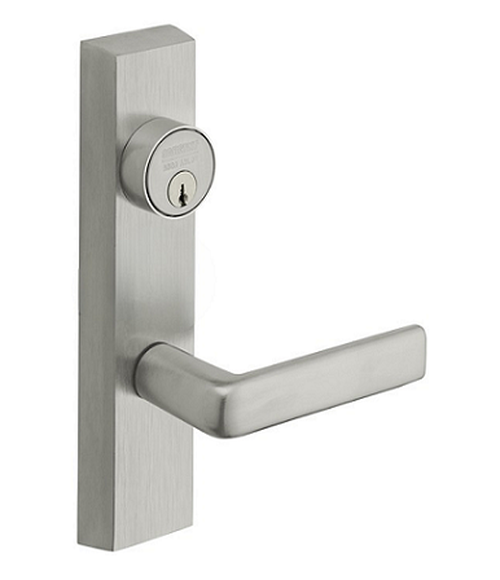

Sargent 713 ETE Classroom Exit Trim, For Surface Vertical Rod and Mortise Devices

Sargent 713 ETE Grade 1 Exit Device Trim, Classroom Function, Key Outside Unlocks/Locks Trim, For Surface Vertical Rod and Mortise (8300, 8700, 8900, 9700, 9800, 9900 Series) Devices, 1-1/8 In. Mortise Cylinder, E Lever

The 700 Series trims are through-bolted to the chassis for greater security and durability.

Function: Classroom - ANSI No.08
Key outside unlocks/Locks trim

Cylinder Type: 1-1/8" Mortise- LA Keyway

For Use With: 8300, 8700, 8900, 9700, 9800, 9900 Series Surface Vertical Rod/Mortise Devices - 8313, 12-8313, 8713, 12-8713, 8913, 12-8913, 9713, 12-9713, 9813, 12-9813, 9913, 12-9913

Lever Style: E Lever

Trim Style: ET

Trim Plate Width: 1-13/16 Inch

Trim Plate Height: 8-1/16 Inch

Product Projection: 3-9/16 Inch

Trim Plate Thickness: 13/16 Inch

Finishes: 26D - Satin Chrome, 10 - Satin Bronze Clear Coated, 4 - Satin Brass, 3 -Bright Brass, 10B - Dark Oxidized Satin Bronze Oil Rubbed, 26 - Bright Chrome

Model: Sargent 713 ETE RHRB 26D, 713 ETE LHRB 26D, 713 ETE RHRB 3, 713 ETE LHRB 3, 713 ETE RHRB 10, 713 ETE LHRB 10, 713 ETE RHRB 10B, 713 ETE LHRB 10B, 713 ETE RHRB 26, 713 ETE LHRB 26
