Sargent 713-4 ETP Classroom Exit Trim, For Concealed Vertical Rod Devices

Sargent 713-4 ETP Grade 1 Exit Device Trim, Classroom Function, Key Outside Unlocks/Locks Trim, Concealed Vertical
Rod (8400, 8600 Series) Devices, 1-1/8 In. Mortise Cylinder, P Lever

The 700 Series trims are through-bolted to the chassis for greater security and durability.

Function: Classroom - ANSI No.08
Key outside unlocks/Locks trim

Cylinder Type: 1-1/8" Mortise - LA Keyway

For Use With: 8400, 8600 Series Concealed Vertical Rod Devices - 8413, 12-MD8413, WD8613, 12-WD8613, MD8613, 12-MD8613

Lever Style: P Lever

Trim Style: ET

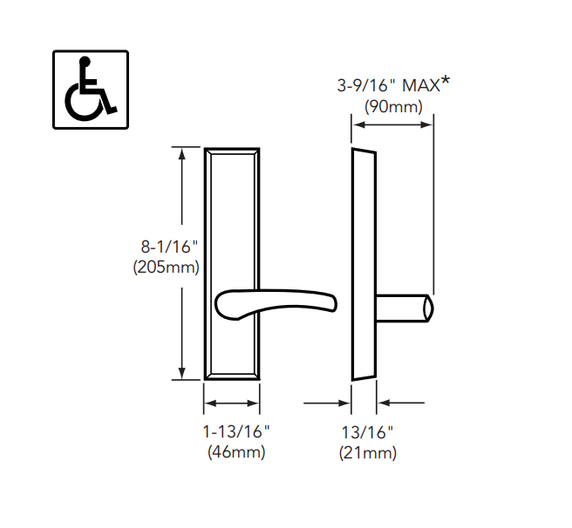

Lever Height: 3 Inch

Lever Length-Inches: 4-15/16 Inch

Trim Plate Width: 1-13/16 Inch

Trim Plate Height: 8-1/16 Inch

Product Projection: 3-9/16 Inch

Trim Plate Thickness: 13/16 Inch

Finishes: 26D - Satin Chrome, 10 - Satin Bronze Clear Coated, 4 - Satin Brass, 3 -Bright Brass, 10B - Dark Oxidized Satin Bronze Oil Rubbed, 26 - Bright Chrome

Model: Sargent 713-4 ETP RHRB 26D, 713-4 ETP LHRB 26D, 713-4 ETP RHRB 3, 713-4 ETP LHRB 3, 713-4 ETP RHRB 10, 713-4 ETP LHRB 10, 713-4 ETP RHRB 10B, 713-4 ETP LHRB 10B, 713-4 ETP RHRB 26, 713-4 ETP LHRB 26
