Sargent 710 ETB Dummy Exit Trim, For Rim, Surface Vertical Rod and Mortise Devices

Sargent 710 ETB Grade 1 Exit Device Trim, Dummy, For Rim, Surface Vertical Rod and Mortise Devices, B Lever

The 700 Series trims are through-bolted to the chassis for greater security and durability.

Function: Dummy - ANSI No.02
No outside operation (No Cylinder) ET Control is used as Pull Only

For Use With: 8310, 12-8310, 8510, 8710, 12-8710, 8810, 12-8810, 8888, 12-8888, NB8710, 8910, 12-8910, 9710, 12-9710, 9810, 12-9810, 9910, 12-9910, SP8710, PP8710, PR8710

Lever Style: B Lever

Trim Style: ET

Lever Height: 3-1/8 Inch

Trim Plate Width: 1-13/16 Inch

Trim Plate Height: 8-1/16 Inch

Product Projection: 3-9/16 Inch

Lever Length-Inches: 3-1/8 Inch

Trim Plate Thickness: 13/16 Inch

Finishes: 26D - Satin Chrome, 10 - Satin Bronze Clear Coated, 4 - Satin Brass, 3 -Bright Brass, 10B - Dark Oxidized Satin Bronze Oil Rubbed, 26 - Bright Chrome

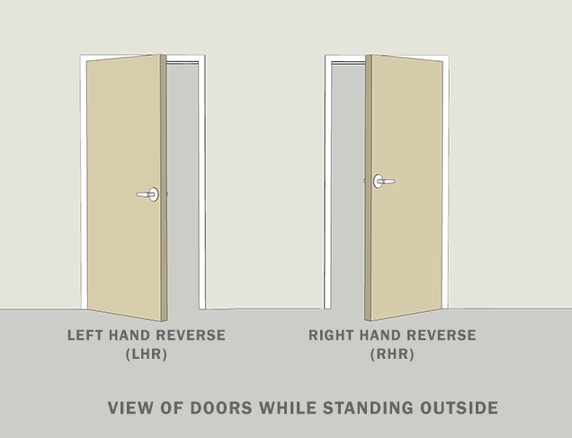

Model: Sargent 710 ETB RHRB 26D, 710 ETB LHRB 26D, 710 ETB RHRB 3, 710 ETB LHRB 3, 710 ETB RHRB 10, 710 ETB LHRB 10, 710 ETB RHRB 10B, 710 ETB LHRB 10B, 710 ETB RHRB 26, 710 ETB LHRB 26
