Sargent 706 ETL Storeroom Exit Trim, For Surface Vertical Rod and Mortise Devices

Sargent 706 ETL Grade 1 Exit Device Trim, Storeroom Function, Key Unlocks Trim, Trim Retracts Latch/Trim Relock
when Key is Removed, For Surface Vertical Rod and Mortise 8700, 8900, 9700 Series Devices, 1-1/8 In. Mortise Cylinder, L Lever

The 700 Series trims are through-bolted to the chassis for greater security and durability.

Function: Storeroom - ANSI No.09
Key unlocks Trim, Trim retracts latch/Trim relocks when key is removed

Cylinder Type: Sargent #41 Mortise Cylinder - LA Keyway

For Use With: 8700, 8900, 9700 Series Surface Vertical Rod and Mortise Devices - 8706, 12-8706, 8906, 9706, 12-9706

Lever Style: L Lever

Trim Style: ET

Lever Height: 2-3/8 Inch

Trim Plate Width: 1-13/16 Inch

Trim Plate Height: 8-1/16 Inch

Product Projection: 3-9/16 Inch

Lever Length-Inches: 4-1/2 Inch

Trim Plate Thickness: 13/16 Inch

Finishes: 26D - Satin Chrome, 10 - Satin Bronze Clear Coated, 4 - Satin Brass, 3 -Bright Brass, 10B - Dark Oxidized Satin Bronze Oil Rubbed, 26 - Bright Chrome

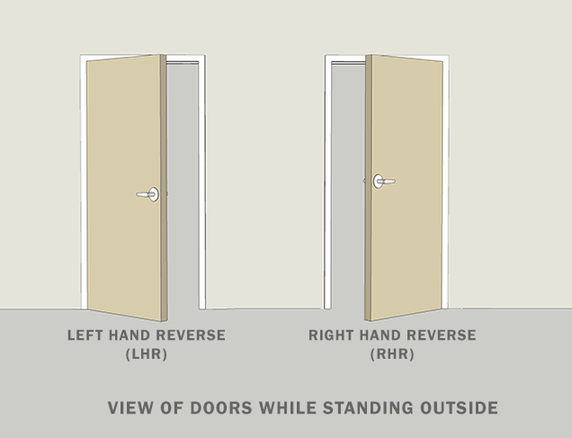

Model: Sargent 706 ETL RHRB 26D, 706 ETL LHRB 26D, 706 ETL RHRB 3, 706 ETL LHRB 3, 706 ETL RHRB 10, 706 ETL LHRB 10, 706 ETL RHRB 10B, 706 ETL LHRB 10B, 706 ETL RHRB 26, 706 ETL LHRB 26
