Sargent 706-8 ETF Storeroom Exit Trim, , For 8500, 8800 and NB8700 Series Devices

Sargent 706-8 ETF Grade 1 Exit Device Trim, Storeroom Function, Key Unlocks Trim, Trim Retracts Latch/Trim Relock
when Key is Removed, For 8500, 8800 and NB8700 Series Devices, 1-1/8 In. Mortise Cylinder, F Lever

The 700 Series trims are through-bolted to the chassis for greater security and durability.

Function: Storeroom - ANSI No.09
Key unlocks Trim, Trim retracts latch/Trim relocks when key is removed

Cylinder Type: Sargent #41 Mortise Cylinder - LA Keyway

For Use With: 8500, 8800 and NB8700 Series Devices - 8506, SP8706, PP8706, PR8706, 8806, NB8706

Lever Style: F Lever

Trim Style: ET

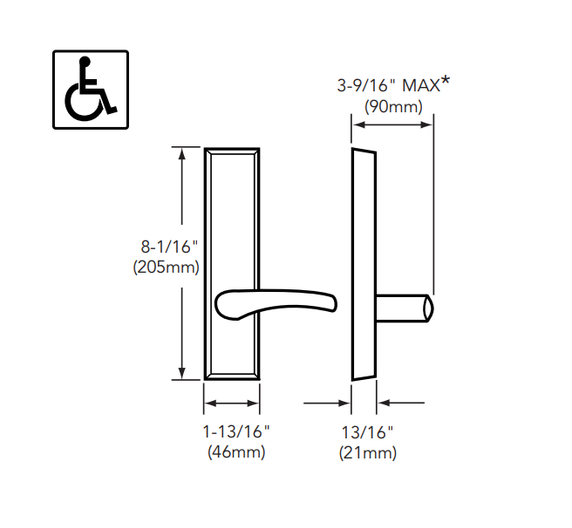

Trim Plate Width: 1-13/16 Inch

Trim Plate Height: 8-1/16 Inch

Product Projection: 3-9/16 Inch

Trim Plate Thickness: 13/16 Inch

Finishes: 26D - Satin Chrome, 10 - Satin Bronze Clear Coated, 4 - Satin Brass, 3 -Bright Brass, 10B - Dark Oxidized Satin Bronze Oil Rubbed, 26 - Bright Chrome

Model: Sargent 706-8 ETF RHRB 26D, 706-8 ETF LHRB 26D, 706-8 ETF RHRB 3, 706-8 ETF LHRB 3, 706-8 ETF RHRB 10, 706-8 ETF LHRB 10, 706-8 ETF RHRB 10B, 706-8 ETF LHRB 10B, 706-8 ETF RHRB 26, 706-8 ETF LHRB 26
