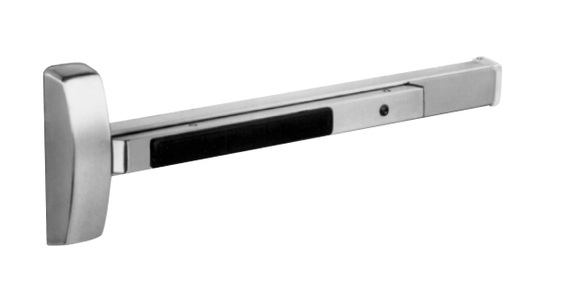

Sargent 55-AD8613G 48" Concealed Vertical Rod Exit Device for Aluminum Doors w/ Request to Exit Switch, Classroom - No Trim

Sargent 55-AD8613G Grade 1 Concealed Vertical Rod Exit Bar, Wide Stile Pushpad, 48" Device, For 8 Foot Door Height, Classroom Function, No trim, Request to Exit Switch, Hex Key Dogging

Designed for standard width stile applications on aluminum doors.

Trim Function: Classroom - No trim
Key outside unlocks/Locks trim

Features
• Designed for standard width stile applications on aluminum doors
• Concealed rods for security and aesthetics
• Single and double door applications
• Devices are ANSI/BHMA A156.3 - Grade 1
• UL305 (Panic) listed only

Specifications

Size: G - 48" (For 43" to 48" doors) - No cutting required for 48" (122cm) door

Dogging Feature: Hex key dogging

Door Type: Aluminum Doors

Door Thickness: 1-3/4" (44mm) minimum thickness

Cladding: Available for 1/4" on 1/2" panels

Stile: 4-1/2" (114mm) minimum stile width

Strike: 650 Top Strike & 606 Bottom Strike (Panic and Fire Rated)
650 Top Strike
• For application in hollowmetal frames
• Stainless steel nylon coated
606 Bottom Strike
• Furnished with expansion shields
• Mortised into floor
• Stainless steel

Mounting Fasteners: Supplied standard with machine screws

Top Bolt: Stainless steel

Device Centerline from Finished Floor: 41" (1041mm) for Standard Applications. 38" (965mm) for elementary schools

Door Height: 8 Foot

Center Case Dimensions: 8-3/8" (213mm) x 2-5/8" (67mm)

Projection: Pushbar Neutral – 3" (76mm). Pushbar Depressed – 2-1/8" (54mm)

55 - Request-to-Exit Option
Switch type SPDT form “C” contacts
• 30 VDC@2 Amp. maximum rating
• All wires run through rail
• Minimum Door Widths:
- Wide Stile Door 24"
- Narrow Stile Door 24"
• See McKINNEY‘s Transfer Device Solutions Catalog for QC Hinge and cable requirements

Finishes: 32D - Satin Stainless Steel, 10 - Satin Bronze Clear Coated, 4 - Satin Brass, BSP - Black Suede Powder Coat,
3 -Bright Brass, 10B - Dark Oxidized Satin Bronze Oil Rubbed, 32 - Bright Stainless Steel

Model: Sargent 55-AD8613G RHR 32D, 55-AD8613G LHR 32D, 55-AD8613G RHR 3, 55-AD8613G LHR 3, 55-AD8613G RHR 4, 55-AD8613G LHR 4, 55-AD8613G RHR 10, 55-AD8613G LHR 10, 55-AD8613G RHR 32, 55-AD8613G RHR 32, 55-AD8613G RHR 10B, 55-AD8613G LHR 10B
