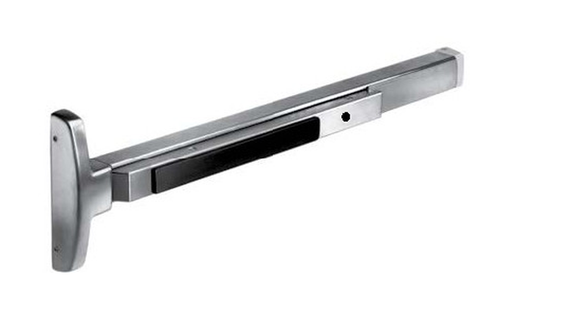

Sargent 55-AD8410 Narrow Stile Concealed Vertical Rod Exit Device for Aluminum Doors w/ Request to Exit Switch, Exit Only

Sargent 55-AD8410 Grade 1 Concealed Vertical Rod Exit Device, Narrow Stile Pushpad, Exit Only, Request to Exit Switch, Hex Key Dogging

Designed for narrow stile applications

Trim Function: Exit Only - No Trim

Features:
• Designed for narrow stile aluminum door applications (e.g., full glass doors)
• Concealed rods for security and aesthetics
• UL10C (Fire) and UL305 (Panic) listed
• All functions determined by outside trim
• Devices are ANSI/BHMA A156.3 - Grade 1

Specifications

Size:
E - 32" (For 24" to 32" doors) - No cutting required for 32" (81cm) door
F - 36" (For 33" to 36" doors) - No cutting required for 36" (91cm) door
J - 42" (For 37" to 42" doors) - No cutting required for 42" (107cm) door
G - 48" (For 43" to 48" doors) - No cutting required for 48" (122cm) door

Dogging Feature: Hex key dogging

Door Type: Hollow or extruded aluminum doors

Door Thickness: 1-3/4" (44mm) minimum thickness

Stile: 1-3/4" (44mm) minimum stile width required. Stile must be hollow with inside dimension of at least 1-3/8" (35mm) square

Strike: 640 Strike for Top & Bottom
639/640 Strike Kits
• Steel with Black Nylon Coating
• Machine Screws Supplied
• 640 Kit contains 2 strikes (Top & Bottom)
• 639 Kit contains 1 strike (Top Only)

Mounting Fasteners: Supplied standard with machine screws

Top Bolt: Stainless steel

Device Centerline from Finished Floor: 41" (1041 mm) for Standard Applications. 38" (965mm) for elementary schools

Center Case Dimensions: 8-3/8" (213mm) x 2-5/8" (67mm)

Projection: Pushbar Neutral – 3" (76mm). Pushbar Depressed – 2-1/8" (54mm)

55 - Request-to-Exit Option
Switch type SPDT form “C” contacts
• 30 VDC@2 Amp. maximum rating
• All wires run through rail
• Minimum Door Widths:
- Wide Stile Door 24"
- Narrow Stile Door 24"
• See McKINNEY‘s Transfer Device Solutions Catalog for QC Hinge and cable requirements

Finishes: 32D - Satin Stainless Steel, 10 - Satin Bronze Clear Coated, 4 - Satin Brass, BSP - Black Suede Powder Coat,
3 -Bright Brass, 10B - Dark Oxidized Satin Bronze Oil Rubbed, 32 - Bright Stainless Steel

Model: Sargent 55-AD8410E 32D, 55-AD8410F 32D, 55-AD8410J 32D, 55-AD8410G 32D
