Sargent 55-8513 Narrow Stile Rim Exit Device w/ Request to Exit Switch, Classroom - No Trim

Sargent 55-8513 Grade 1 Rim Exit Device, Narrow Stile Pushpad, Classroom Function, No trim, Request to Exit Switch, Hex Key Dogging

Designed for narrow stile applications

Trim Function: Classroom - No trim
Key outside unlocks/Locks trim

Features:
• Designed for narrow stile applications (e.g., aluminum frame full glass doors)
• Single and double doors with mullion
• Single point rim latching device
• Quiet operation and solid security
• Devices are ANSI/BHMA A156.3 - Grade 1
• UL10C (Fire) and UL305 (Panic) listed

Specifications

Size:
E - 32" (For 24" to 32" doors) - No cutting required for 32" (81cm) door
F - 36" (For 33" to 36" doors) - No cutting required for 36" (91cm) door
J - 42" (For 37" to 42" doors) - No cutting required for 42" (107cm) door
G - 48" (For 43" to 48" doors) - No cutting required for 48" (122cm) door

Dogging Feature: Hex key dogging

Door Type: Wood or Metal Doors

Door Thickness: 1-3/4" (44mm) minimum thickness

Stile: 2" (114mm) minimum stile (Less Trim)

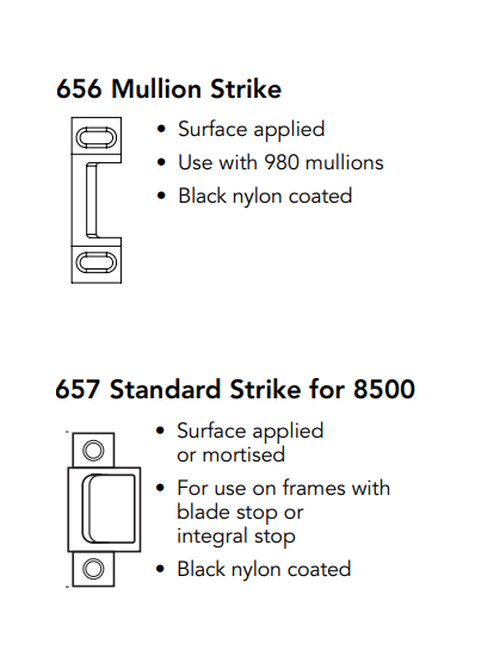

Strike:
657 Standard Strike for 8500
• Surface applied or mortised
• For use on frames with blade stop or integral stop
• Black nylon coated

656 Mullion Strike
• Surface applied
• Use with 980 mullions
• Black nylon coated

Mounting Fasteners: Supplied standard with wood and machine screws

Latch Bolt: Stainless steel, 3/4" (19mm) throw

Device Centerline from Finished Floor: 41" (1041 mm) for Standard Applications

Center Case Dimensions: 8-5/16" (211mm) x 1-1/16" (27mm)

Projection: Pushbar Neutral – 3" (76mm). Pushbar Depressed – 2-1/8" (54mm)

55 - Request-to-Exit Option
Switch type SPDT form “C” contacts
• 30 VDC@2 Amp. maximum rating
• All wires run through rail
• Minimum Door Widths:
- Wide Stile Door 24"
- Narrow Stile Door 24"
• See McKINNEY‘s Transfer Device Solutions Catalog for QC Hinge and cable requirements

Finishes: 32D - Satin Stainless Steel, 10 - Satin Bronze Clear Coated, 4 - Satin Brass, BSP - Black Suede Powder Coat,
3 -Bright Brass, 10B - Dark Oxidized Satin Bronze Oil Rubbed, 32 - Bright Stainless Steel

Model: Sargent 55-8513 32D, 55-8513 3, 55-8513 4, 55-8513 10, 55-8513 32, 55-8513 10B
