Sargent 486 Grade 1 Single Cylinder x Blank Plate Deadbolt

Sargent 486 Grade 1 Single Cylinder x Blank Plate Deadbolt

Function: Single Cylinder - ANSI E0161
• Key outside operates deadbolt

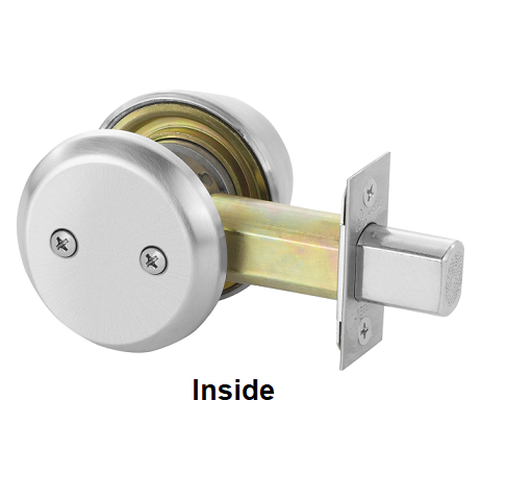

• Blank plate by exposed screws inside. Minimum 1" (25mm) required between doors

Specifications:

For Doors: 1-3/8" (35mm) to 1-3/4" (44mm) thick standard

Door Prep: Fits 161 (standard) cut outs and Fits 160 with 2-3/8" (60mm) backset with 1" (25mm) front and for 1-3/8" (35mm) thick door

Backsets: 2-3/4" (70mm) standard. 2-3/8" (60mm) optional (20- option)

Strike: Wrought brass, bronze or stainless steel

Bolt: Solid steel with hardened steel pin insert and nickel silver plating 7/8" (22mm) x 5/8" (16mm) x 1" (25mm) throw

Cylinder: Brass, 6 pin. 2 nickel silver keys

Keyway: LA keyway (standard)

Masterkeying: Can be masterkeyed. Construction key system available

Front: Wrought brass, bronze or stainless steel 2-1/4" (57mm) x 1-1/8" (29mm) with fixed bevel 1/8" (3mm) in 2" (51mm) furnished standard

Handing: Non handed, field reversible

Housing: Non-ferrous, reinforced, one piece 2-1/2" (64mm) diameter
LFIC options: housing brass & zinc, two piece
Concealed screws on double cylinder function

ANSI/BHMA: A156.36 Certified Grade 1

UL/cUL Listed: 480 series deadbolts, when used in conjunction with the primary latching device, are UL/cUL listed for use with Classified steel covered composite or hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes.

Positive Pressure: Meets ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies

Finishes: 03, 04, 09, 10, 10B, 10BE, 14, 15, 26, 26D, BSP, WSP

Model: Sargent 486 26D, 486 3, 486 4, 486 10, 486 10B, 486 26, 60-486 26D, 60-486 3, 60-486 4, 60-486 10, 60-486 10B, 60-486 26, 70-486 26D, 70-486 3, 70-486 4, 60-484 10, 70-486 10B, 70-486 26, 70-486 26D, LC-486 3, LC-486 4, LC-486 10, LC-486 10B, LC-486 26
