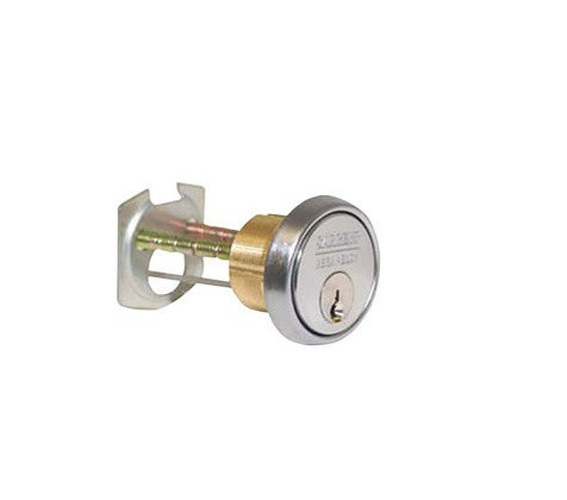

Sargent 34 Rim Cylinder

Sargent 34 LA Rim Cylinder

Door Thickness when used with outside trim: 2-3/8" to 3-1/4" (60mm to 82mm)

Key(s): Cut

Num Pins: 6

Num of Keys: 2

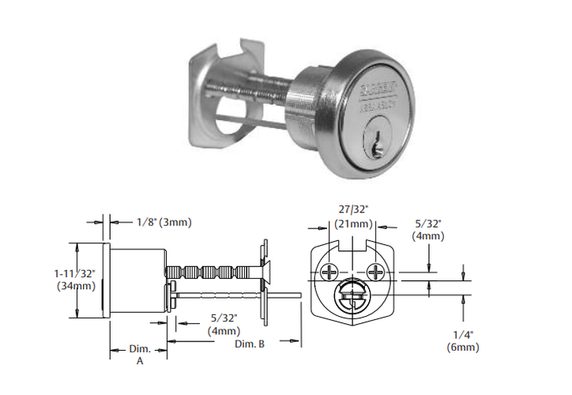

• 27/32" (21mm) screw pattern for through-bolted SARGENT exit devices
• Cylinder: Solid brass
• Cap: Brass, bronze or stainless steel
• Furnished standard with No. 97 rosette and compression spring, “break-off” screws and back plate
• Horizontal tail piece only
• Cylinder finishes: 3, 4, 9, 10, 10B, 10BL, 15, 20D, 26, 26D, 32, 32D
• Plug finishes: 4, 15

Model:
