Sargent 2870-11G17 LP Utility, Asylum or Institutional T-Zone Cylindrical Lever Lock, Accepts Small Format IC core (SFIC)

Sargent 2870-11G17 LP Utility, Asylum or Institutional T-Zone Cylindrical Lever Lock, Accepts Small Format IC core (SFIC)

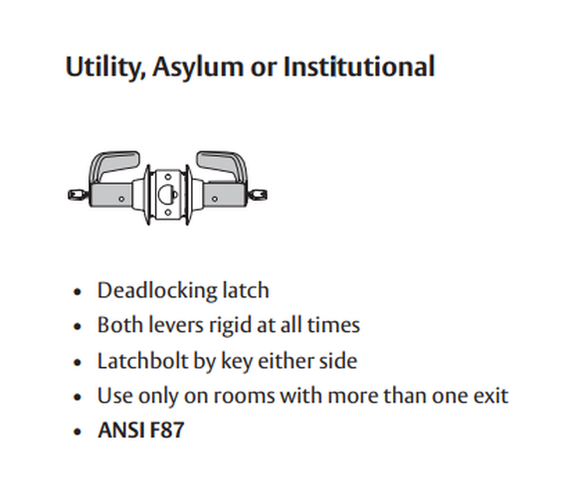

Function Description: Utility, Asylum Or Institutional Lock - ANSI F87
• Deadlocking latch
• Both levers rigid at all times
• Latchbolt by key either side
• Use only on rooms with more than one exit

Door Prep: ANSI/BHMA A156.115 (161)

Door Thickness: 1-3/4" to 2" (44mm to 51mm) thick doors standard
Specify 31- option for doors 2-1/4" to 2-1/2" (57mm x 64mm) centered in door prep, no paneling.
Consult factory for other door thicknesses available by special application. Not available for 1-3/8" (35mm) thick doors

Backsets: 2-3/4" (70mm) standard 3-3/4" (95mm) backset (specify 23- Option) 5" (127mm) backset

Bearing Assembly: Cast and machined stainless steel

Front: Wrought brass, bronze or stainless steel 2-1/4" x 1-1/8" (57mm x 29mm)
Self-adjusting for flat to 1/8" (3mm) in 2" (51mm) bevel

Strike: Wrought brass, bronze or stainless steel 800 curved lip strike standard 808 ANSI
curved lip strike (specify 28- Option) Wrought box strike

Hand: Non-handed

Levers: Secured with 6 lobe security set screw standard 6 Lobe tool packed with each lock

Roses: Heavy wrought brass, bronze or stainless steel

Latchbolt: Stainless steel bolt 7/8" (22mm) dia. x 1/2" (13mm) throw Optional: Brass 3/4" (19mm)
throw deadlocking fire latch for pair of doors

Cylinder: Brass, 6-pin LA keyway, 1-bitted standard, specify KD for keyed different/random

Keys: Two nickel silver change keys per lock standard

Masterkeying: Can be masterkeyed or grand masterkeyed Construction key systems available

Finishes: 03, 04, 09, 10, 10B, 10BE, 10BL, 14, 15, 20D, 26, 26D, BSP, WSP

Minimum Stile: 4-1/4" (108mm) with B and O roses 4-1/2" (114mm) with E and L roses

Warranty: Ten-year limited

T-Zone Construction
Direct linkage with fixed alignment between the hub and the latchbolt is the best construction for quietly and effectively operating the latchbolt. For this reason, SARGENT developed the interlocking aligning and latch tubes, which form a rugged torque resistant “T” in the critical twist area. This “T-Zone” construction, combined with long lasting components, makes 11 Line bored lock outstanding!

Strength & Durability
• UL Cycle above and beyond test completed at 7.6 Million Cycles
Verification ID: V584148
• True interlocking between the cast/ machined stainless steel lockbody and latchbolt provides strength and durability
• Independent Testing proves:
– Exceeds ANSI/ BHMA A156.2 Grade 1 standard for cycle testing. Verified by UL for Operational Cycling (V584148) at 7 Million Cycles.
– Exceeds ANSI/ BHMA A156.2 Grade 1 torque force on a locked lever. Over 3000 in/lbs!
– Virtually no lever sag ever

Model: Sargent 2870-11G17 LP 26D, 2870-11G17 LP 3, 2870-11G17 LP 4, 2870-11G17 LP 10, 2870-11G17 LP 10B, 2870-11G17 LP 26
