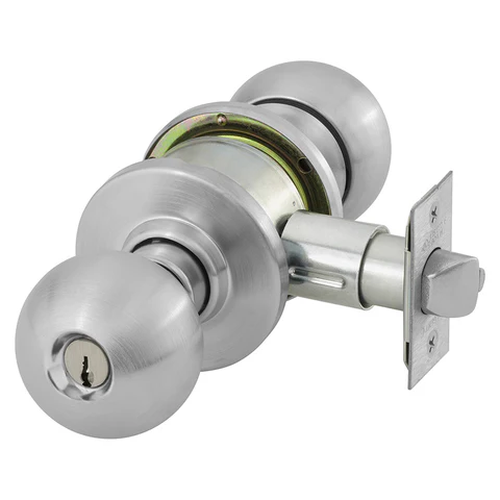

Sargent 28-6G37 OB 26D Grade 2 Classroom Cylindrical Knob Lock, Conventional Cylinder, Satin Chrome Finish

Sargent 28-6G37 OB 26D Grade 2 Classroom Cylindrical Lock, B Knob, O Rose, Conventional Cylinder, Satin Chrome Finish

Function: Classroom - F84
• Deadlocking latch
• Latch retracted by either knob unless outside knob is locked by key
• Key in outside knob locks or unlocks outside knob

Applications
• Standard duty commercial buildings
• Offices
• Apartment buildings
• Hotel/Motel
• Residential housing
• Retail
• Churches
• Warehouses

Specifications
For Doors: 1-3/8" (35mm) thick door adjustable to 1-3/4" (44mm).

Backset: 2-3/8" (60mm) x 1" (25mm) standard. 2-3/4" (70mm) x 1" (25mm) backset available.

Bored Housing: Steel, zinc dichromate finish

Front: Wrought brass or bronze 2-1/4" (57mm) x 1" (25mm) standard.

Strike: Wrought brass, bronze or stainless steel 800 curved lip strike standard.

Handing: Cylinder type locks — reversible in field.

Knobs: Heavy wrought brass or bronze

Roses: Heavy wrought brass or bronze

Latch: Brass x 1/2" (13mm) throw

Cylinder: Brass, 6 pin, LA keyway standard

Keys: Two, nickel silver

Masterkeying: Can be master keyed or grand master keyed. Construction key systems available.

Door Prep: 160 Standard Door Prep

Minimum Stile: 4" (102mm) with B and O roses

Certification Compliance

ANSI: Certified ANSI A156.2 Series 4000 — Grade 2
UL: UL listed to U.S.A. and Canadian safety standards. Listed for 3 Hour Doors
Positive Pressure: Meets ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies

Model: Sargent 28-6G37 OB 26D
