Sargent 28-65G05 KL Entrance or Office Cylindrical Lever Lock
In Stock
$229.64
Price:
$405.00
Instant Savings
$175.36

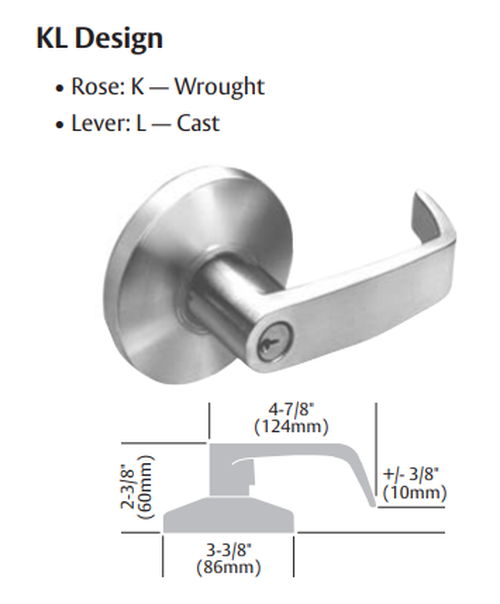

Sargent 28-65G05 KL Entrance or Office Cylindrical Lever Lock
Function Description: Entrance or Office lock - ANSI F109
• Deadlocking latch
• Latch by either lever unless outside lever is locked by push/turn button in inside lever
• Push button released by key outside or lever inside
• Turn button must be released manually
• Key retracts latch when outside lever is locked
For Doors: 1-3/8" (35mm) to 1-3/4" (44mm) only
Backset: 2-3/4" (70mm) standard
Cylindrical Housing: Steel zinc dichromate finish
Front: Wrought brass and stainless steel 2-1/4" (57mm) x 1-1/8" (29mm)
Strike: 808 ANSI Curved Lip
Hand: Universal, non-handed
Latch: Brass 1/2" (13mm) throw
Keys: Two, nickel silver
Cylinder: Brass, 6- pin, LA keyway standard
Finishes: 03, 04, 10B, 10BE, 26, 26D, BSP
Door Prep: ANSI/BHMA A156.115
Minimum Stile: 4-1/2" (114mm)
Model: Sargent 28-65G05 KL 26D, 28-65G05 KL 3, 28-65G05 KL 10B, 28-65G05 KL 26
