Sargent 28-65G04 KB Storeroom or Closet Cylindrical Lever Lock

Sargent 28-65G04 KB Storeroom or Closet Cylindrical Lever Lock

Function Description: Storeroom or Closet lock - ANSI F86
• Deadlocking latch
• Latch by lever inside or key outside
• Outside lever rigid at all times

For Doors: 1-3/8" (35mm) to 1-3/4" (44mm) only

Backset: 2-3/4" (70mm) standard

Cylindrical Housing: Steel zinc dichromate finish

Front: Wrought brass and stainless steel 2-1/4" (57mm) x 1-1/8" (29mm)

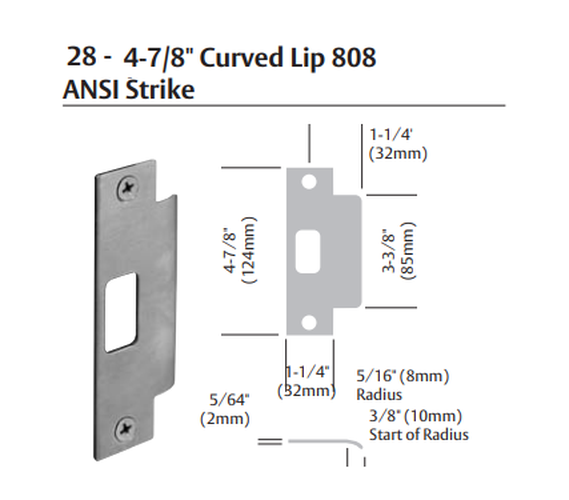

Strike: 808 ANSI Curved Lip

Hand: Universal, non-handed

Latch: Brass 1/2" (13mm) throw

Keys: Two, nickel silver

Cylinder: Brass, 6- pin, LA keyway standard

Finishes: 03, 04, 10B, 10BE, 26, 26D, BSP

Door Prep: ANSI/BHMA A156.115

Minimum Stile: 4-1/2" (114mm)

Model: Sargent 28-65G04 KB 26D, 28-65G04 KB 3, 28-65G04 KB 4, 28-65G04 KB 10B, 28-65G04 KB 26
