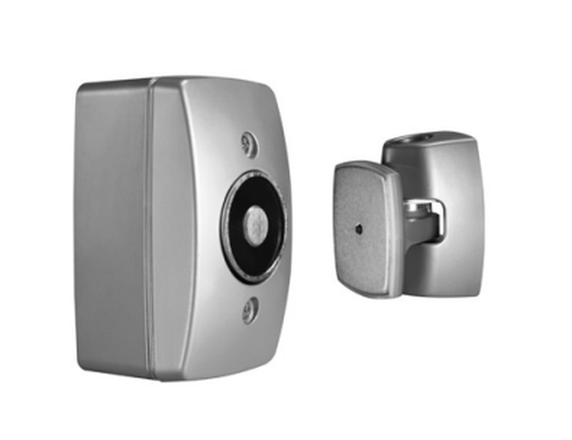

Sargent 1560 EN Surface Mount Magnetic Door Holder, Sprayed Aluminum

Sargent 1560 Surface Mount Magnetic Door Holder, 120VAC, 24VAC/DC, 12VDC, Sprayed Aluminum

Electromagnetic Door Holder
• Designed for use with self-closing fire and smoke barrier doors
• Use independently or with any fire or smoke detector system
• When de-activated, helps control the spread of fire and smoke by automatically releasing doors from an open position for simultaneous closing
• Fail-safe device: When electrical power fails, doors will release to close automatically
• Conforms to devices outlined in National Fire Protection Agency Standards Nos. 80 and 101
• Designed to work with SARGENT door closers
• Recommended vertical location is on top rail of door – within 6" of lock stile edge
• When applications will not allow wall or floor magnets, consult SARGENT’s FireGuard catalog for our line of Electronic Closer Holders
• Fits standard outlet box
• Holding force – 35 lbs typical
• Voltage and Current:
120 VAC, 60 Hz., .020 amp
24 VAC/DC, 60 Hz., .020 amp
12 VDC, .040 amp

• Meets ANSI/BHMA A156.15
• UL Listed to U.S. and Canadian safety standards
• 1" (25mm) extension p/n 52-2573 included standard to increase armature projection to 2-5/8" (67mm)

Finish: EN - Sprayed Aluminum

Model: Sargent 1560 EN
