Sargent 10XU93 LB Single Lever Pull

Sargent 10XU93 LB Single Lever Pull

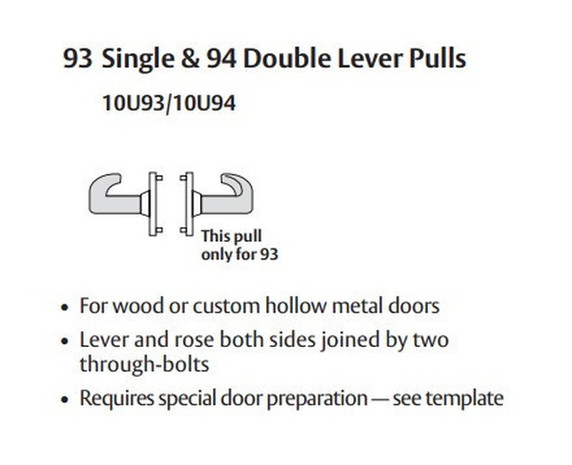

Function Description: Single Lever Pull
• For wood or custom hollow metal doors
• Lever and rose both sides joined by two through-bolts
• Requires special door preparation — see template

Door Thickness: 1-3/4" (44mm) thick door adjusts to 2" (51mm) standard

Bearing Assembly: Cast and machined stainless steel

Hand: Non-handed

Roses: Heavy wrought brass, bronze or stainless steel

Finishes: 03, 04, 09, 10, 10B, 10BE, 10BL, 14, 15, 20D, 26, 26D, BSP, WSP

Minimum: 4-1/2" (114mm)

Door Prep: ANSI/BHMA A156.115

Warranty: Ten-year limited

Freewheeling Locked Lever Option:
• Available on all locking functions except 10G70 and 10G71
• Provides protection from vandalism and added security
• Stops in the rose prevent the lever from traveling beyond 60° in either direction
• Not available in “J” Lever Design and some options

Model: Sargent 10XU93 LB 26D, 10XU93 LB 3, 10XU93 LB 4, 10XU93 LB 10, 10XU93 LB 10B, 10XU93 LB 26
