Sargent 10XG70 LB Electromechanical Cylindrical Lever Lock (Fail Safe)

Sargent 10XG70 LB Electromechanical Cylindrical Lever Lock (Fail Safe)

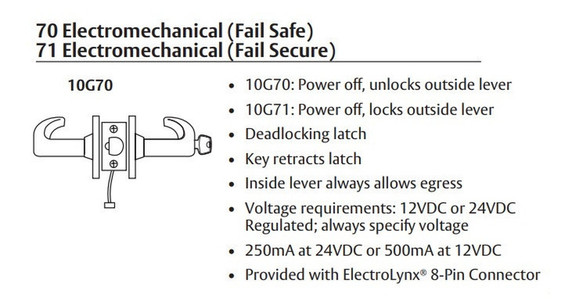

Function Description: 70 Electromechanical (Fail Safe)
• Power off, unlocks outside lever
• Deadlocking latch
• Key retracts latch
• Inside lever always allows egress
• Voltage requirements: 12VDC or 24VDC
• 250mA at 24VDC or 500mA at 12VDC
• Provided with ElectroLynx® 8-Pin Connector

Door Thickness: 1-3/4" (44mm) thick door adjusts to 2" (51mm) standard

Backset: 2-3/4" (70mm) backset w/ 1-1/8" front (standard)

Bearing Assembly: Cast and machined stainless steel

Front: Wrought brass, bronze and stainless steel 2-1/4" (57mm) x 1-1/8" (29mm) Fixed Bevel

Strike: 4-7/8" Curved Lip Strike (standard)

Hand: Non-handed

Latch: Stainless steel 1/2" (13mm) throw Brass

Roses: Heavy wrought brass, bronze or stainless steel

Cylinder: Cylinder Brass, 6 pin, LA keyway standard

Keys: Two nickel silver change keys per lock standard

Masterkeying: Can be masterkeyed or grand masterkeyed Construction key systems available

Finishes: 03, 04, 09, 10, 10B, 10BE, 10BL, 14, 15, 20D, 26, 26D, BSP, WSP

Minimum: 4-1/2" (114mm)

Door Prep: ANSI/BHMA A156.115

Warranty: Ten-year limited

Model: Sargent 10XG70 LL 26D, 10XG70 LL 3, 10XG70 LL 4, 10XG70 LL 10, 10XG70 LL 10B, 10XG70 LL 26, 60-10XG70 LL 26D, 60-10XG70 LL 3, 60-10XG70 LL 4, 60-10XG70 LL 10, 60-10XG70 LL 10B, 60-10XG70 LL 26, 70-10XG70 LL 26D, 70-10XG70 LL 3, 70-10XG70 LL 4, 70-10XG70 LL 10, 70-10XG70 LL 10B, 70-10XG70 LL 26, LC-10XG70 LL 26D, LC-10XG70 LL 3, LC-10XG70 LL 4, LC-10XG70 LL 10, LC-10XG70 LL 10B, LC-10XG70 LL 26
