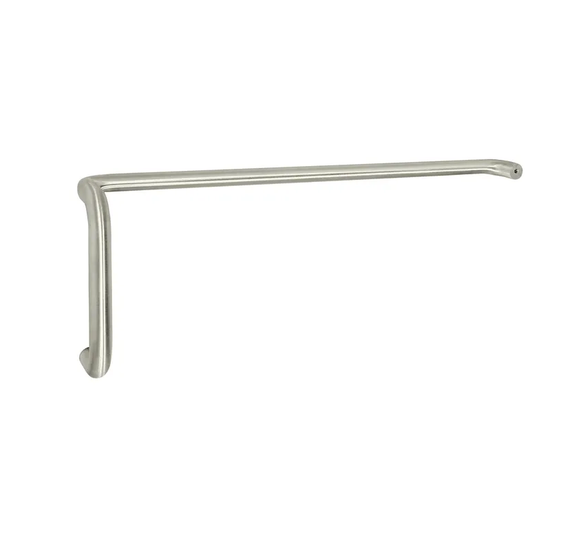

Rockwood 11047 Push Pull Bar Sets

Rockwood 1047 Push Pull Bar Set 28 X 8, Push Bar 1 X 28 inch CTC, Straight Pull 1 X 8 CTC, T3 Back to Back/Top and Thrubolt Mounting

11047 (8" CTC), 11147 (10" CTC), 11247 (12" CTC), and 11847 (18" CTC) Series 47 Straight Single Bar Sets feature optional engraving, base plates, and heavy duty fastening types.

Material: Aluminum, brass, bronze, stainless steel

Mounting: Metal and Wood: T3 Back to Back and Thru Bolt; Pull Free End = 1, Push Free End = 1, Common End = 5

Specifications
• End Shape: Bent

• Grip Shape: Round

• Base Material: Aluminum, Brass, Bronze, Stainless steel

• Engraving "PUSH" or "PULL"

• Diameter:  1"

• Push Clearance: 1-3/4"

• Pull Clearance 2"

• Pull projection is 3-1/2" for stainless steel and 3" for aluminum, brass, and bronze

• Push projection is 2-3/4" 

• CTC: 8"

• Optional Base plates available — use BP prefix when ordering

• Heavy duty versions of most fastening types available — use suffix HD to fastening type number

• 11.5 lbs.
