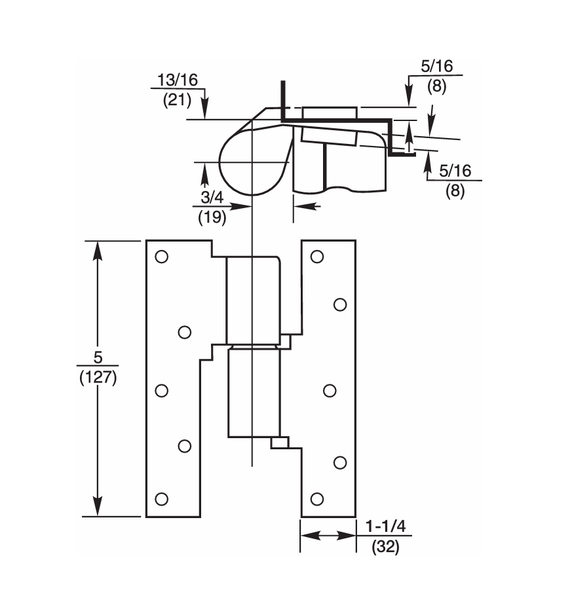

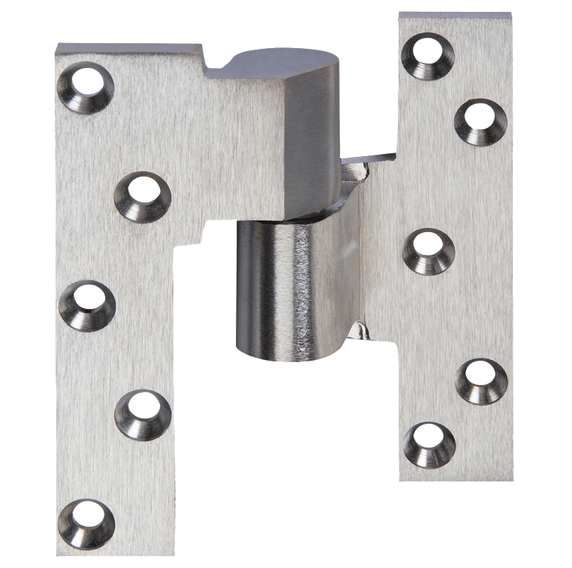

Rixson ML19 X 1-3/4 Door 3/4" Offset Intermediate Pivot for 1-3/4" Door

Rixson ML19 X 1-3/4 Door 3/4" Offset Intermediate Pivot, 1-3/4 Door

The ML19 is an intermediate pivot used for lead-lined, heavy, or high-traffic doors.

Features
• Full mortise
• Lead-lined, heavy or high traffic doors
• Handed
• Load-bearing
• Screw holes spaced to straddle lead lining in center of door. Also use on extra heavy or high traffic door
• Maintains door alignment
• Aids in installing closers and pivots
• Door edges must be beveled in 1/8" in 2"
• Non-ferrous base material
• Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) warrants another intermediate pivot
• Furnished with wood and machine screws

Model: Rixson ML19 X 1-3/4 Door RH 626, ML19 X 1-3/4 Door LH 626, ML19 X 1-3/4 Door RH 605, ML19 X 1-3/4 Door LH 605, ML19 X 1-3/4 Door RH 606, ML19 X 1-3/4 Door LH 606, ML19 X 1-3/4 Door RH 612, ML19 X 1-3/4 Door LH 612, ML19 X 1-3/4 Door RH 613, ML19 X 1-3/4 Door LH 613
