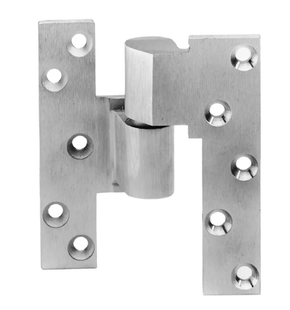

Rixson M190 3/4" Offset Intermediate Pivot, Heavy-Duty Full Mortise

Rixson M190 3/4" Offset Intermediate Pivot

The M190 is an intermediate pivot used when the frame condition does not allow a standard top pivot.

Features
• Heavy-duty full mortise
• Handed
• Used when frame condition does not allow standard top pivot
• Lateral load-bearing
• Maintains door alignment
• Aids in installing floor closers and bottom pivots
• Heavy-duty needle bearing
• 3/4" (19mm) offset standard
• Door edges must be beveled in 1/8" in 2"
• Non-ferrous base metal
• Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) warrants another intermediate pivot
• Furnished with wood and machine screws

Model: Rixson M190 RH 626, M190 LH 626, M190 RH 605, M190 LH 605, M190 RH 606, M190 LH 606, M190 RH 612, M190 LH 612, M190 RH 613, M190 LH 613
