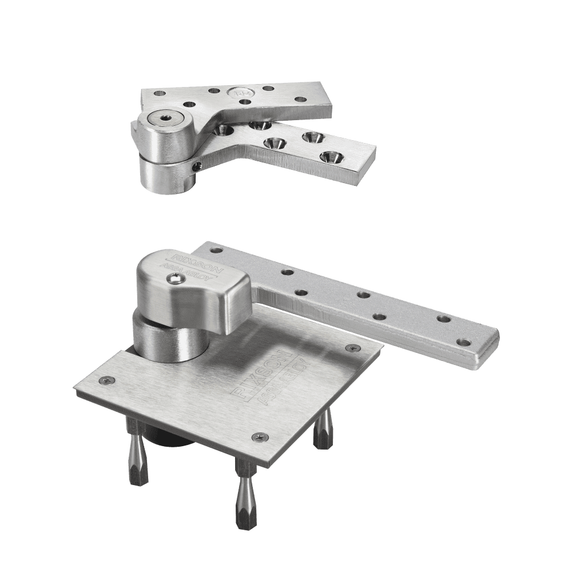

Rixson L117 X 1-3/4 Door 3/4" Offset Hung Pivot for 1-3/4" Door, Includes 180 Top Pivot, 1750lbs Max Door Weight

Rixson L117 X 1-3/4 Door 3/4" Offset Hung Pivot, 1-3/4" Door, Includes L180 Top Pivot

The L117 is an offset-hung, heavyweight pivot set designed for lead-lined, high-traffic interior or exterior doors weighing up to 1,750lbs.

Features
• Exterior or interior doors
• Lead-lined, heavy, high traffic doors
• Weight to 1,750 lbs.*
• Door width up to 4'0" (1219mm)
• Handed
• L180 top pivot included
• ML19 intermediate pivot required (sold separately)
• 3/4" (19mm) offset (measured from centerline of pivot to face of door)
• Door edges must be beveled in 1/8" in 2"
• Bottom pivot mortised into floor
• Additional thrust bearing for greater load capacity
• Doors will swing 180°, trim permitting
• Non-ferrous base material for top pivot
• Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) of door height warrants another intermediate pivot
• Furnished with wood and machine screws

Model: Rixson L117 X 1-3/4 Door RH 626, L117 X 1-3/4 Door LH 626, L117 X 1-3/4 Door RH 613, L117 X 1-3/4 Door LH 613, L117 X 1-3/4 Door RH 605, L117 X 1-3/4 Door LH 605, L117 X 1-3/4 Door RH 606, L117 X 1-3/4 Door LH 606, L117 X 1-3/4 Door RH 619, L117 X 1-3/4 Door LH 619
