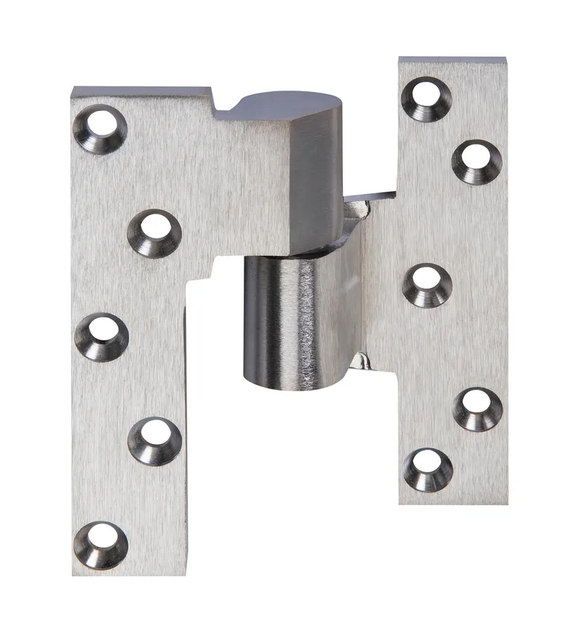

Rixson FM19 626 3/4" Offset Intermediate Pivot, Fire Rated, Satin Chrome Finish

Rixson FM19 3/4" Offset Pivot, Intermediate, Fire Rated

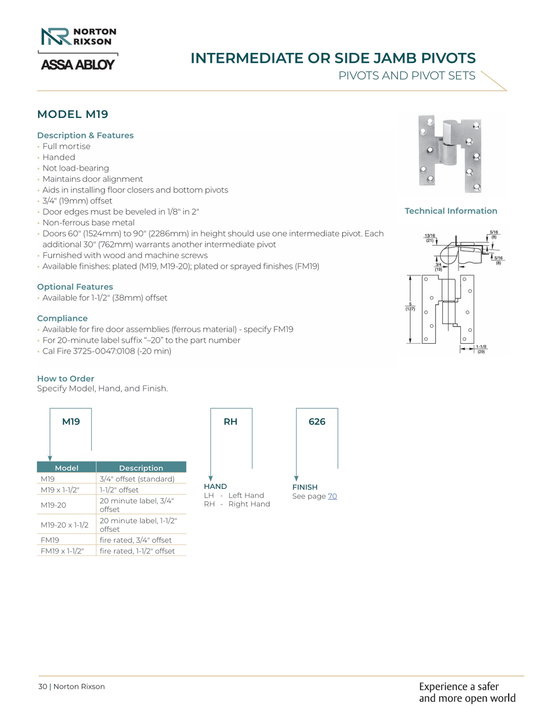

The M19 is an intermediate, standard-duty full-mortise pivot designed for full surface, flush door, and frame applications.

Features
• Full mortise
• Handed
• Not load-bearing
• Maintains door alignment
• Aids in installing floor closers and bottom pivots
• 3/4" (19mm) offset
• Door edges must be beveled in 1/8" in 2"
• Non-ferrous base metal
• Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) warrants another intermediate pivot
• Furnished with wood and machine screws

Compliance
• Available for fire door assemblies (ferrous material) - specify FM19

Model: Rixson FM19 LH 626, FM19 RH 626
