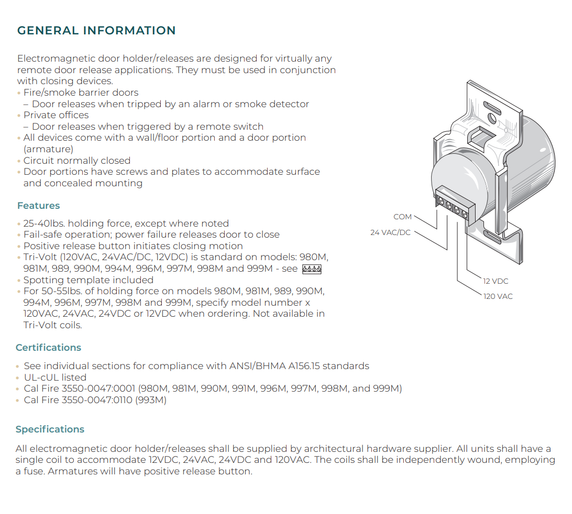

Rixson 991M 689 Electromagnetic Door Holder/Release, Hazardous Location Wall, Aluminum Painted
Application
• Wall mount
• Surface wiring
• Hazardous locations
• Shipping weight: 3 lbs. (1.4 kg)
Features
• Total projection: 4" (101mm)
• Approved for class I division 2, class II division 2, groups F and G and class III locations
• Unit includes a sealed surface-mounted junction box
• 2 year limited warranty
Compliance
• ANSI/BHMA A156.15, Grade 1
• ANSI/C00011
Electrical Data
Voltage and current:
120VAC, 60Hz., .017 amp
24VAC, .080 amp
12VAC, .180 amp
24VDC, .068 amp
Finishes: 689 - Aluminum Painted, 696 - Gold Painted
Model: Rixson 991M 120VAC 689, 991M 24VAC/DC 689
