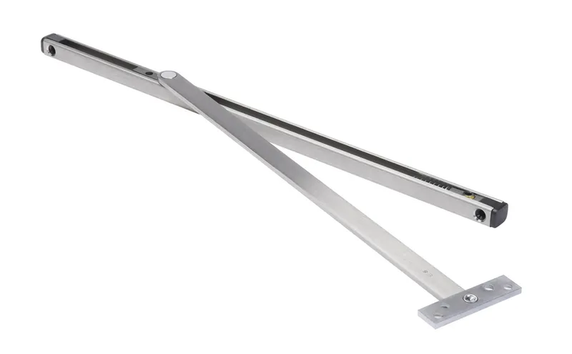

Rixson 10-336 Standard Duty Surface Mount Overhead Stop

Rixson 10-336 10 Series Surface Mount Overhead Stop, Standard Duty

Door Opening Size
Butts Offset Pivots: 30-1/16 - 36
Center Hung Pivots: 32-1/16 - 38

Application
• Interior doors
• Doors are single acting
• Non-handed
• Recommended for moderate, medium weight doors

Features
• Standard duty, adjustable
• Slide track design
• Degree of opening fully adjustable and can be adapted to changing needs
• Heavy shock absorber spring provides compression before deadstop
• Complete screw packet with thru-bolts for door, wood and machine screws for frame
• Durable slider cam and shock block
• 110° maximum opening
• 3/4" square channel
• For pull side mounting or flush and rabbeted mounting on push side use angle jamb bracket adapter 5258
• Hanging means other than standard butts or offset pivots require special templating and pricing

Compliance
• ANSI/BHMA A156.8, Grade 1 Certified (Stop Models)
• Stop function UL listed for fire door assemblies

Model: Rixson 10-336 630
