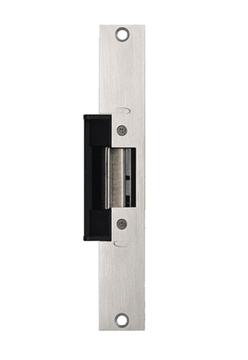

RCI 4314 Electric Strike w/ 4-7/8" Square Corner Faceplate, Fail Safe, Satin Stainless Steel Finish
In Stock
$136.08
Price:
$224.00
Instant Savings
$87.92
RCI 4314 Electric Strike, 4-7/8" Faceplate, For 3/4" Projection Latches, Fail Safe, Satin Stainless Steel
The 4 series centerline strike accommodates 3/4" latch projections. Its various faceplate options and 1-1/2” cut-out depth accommodates most door frame types and materials. Installation is simple with standard mounting tabs and included fasteners. Crossed wires are never a problem, as the coil is not polarity sensitive. The RCI 4 series centerline strikes are available with an optional 1-1/2 hour fire-rating. 41 Series depicts fail-secure and 43 Series depicts fail-safe.
Insert Depth: 1-1/2" D (38mm)
14 - 1-1/4"W x 4-7/8"H (32mm x 124mm), ANSI Square Corners
Features
• Accommodates 3/4” (19mm) latch projection
• 1-1/2” (38mm) insert depth accommodates most door frame material types
• Use with wide range of door thicknesses, 1-3/8” to 2-3/8” (35mm-60mm)
• Standard mounting tabs and fasteners included
• Non-handed
• Trim plate included to cover up irregular frame cutout
• Brushed Stainless Steel (32D) finish
• UL 1034 burglary-resistant Listed
• UL 10C, 1-1/2-hour fire-rating Listed4
• CAN/ULC S104, 1-1/2-hour fire-rating Listed4
• Certified to ANSI/BHMA standard A156.31, Grade 1, endurance 500,000 cycles3 (F4 models only)
Model: RCI 4314-05 32D, 4314-08 32D, 4314-01 32D
