PHI Precision FL5108 36 Fire Rated Rim Exit Device, Key Locks/Unlocks Lever Prep (No Trim), 36"

PHI Precision FL5108 Grade 1 Fire Rated Rim Exit Device, Key Locks/Unlocks Lever Prep (No Trim), 36" Device, Less Dogging

Trim Function: Key Locks/Unlocks Lever Prep (No Trim)

Door Sizes: 36" For 2'-7" to 3' Width

Fasteners: Furnished standard with machine screws and full thread wood/sheet metal screws.

Doors: For all types of single and double doors with a mullion. Available for 1-3/4" to 2-1/4" thick, up to 4'-0" wide openings

Handing: Non handed

Active Case & Trim: Covers ANSI A115.2 (Type 161) or ANSI A115.18 cylinder lock preparation. Active Case through bolts in ANSI A115.18 preparation without additional machining.

Active Case Cover & Endcap: High Impact Thermoplastic.

Active Case: Stainless Steel

Touchbar Sub-Assembly: Zinc Dichromate plated Heavy Wrought Steel.

Touchbar Assembly: Powder Coated Heavy Wrought Steel.

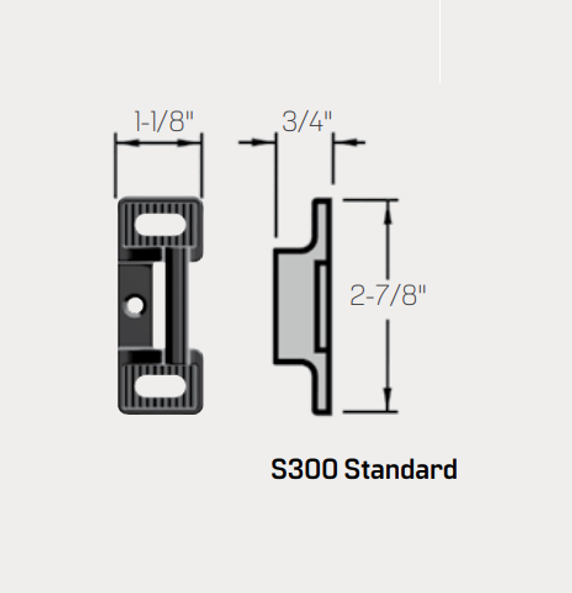

Strike: No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard

Latchbolt: Stainless Steel, Deadlocking, 3/4" throw.

Dogging: Less Dogging

Touchbar Height: 40-5/16" from floor standard. May be varied as situation dictates.

UL Listed: Panic and Fire Exit Hardware. Conforms to UL10C and UBC 7-2.

ANSI/BHMA: Devices are BHMA certified for ANSI 156.3, Grade 1.

Finishes: 689 Aluminum Powder Coat, 695 Dark Bronze Powder Coat

Touchbar Monitoring
Available for all Precision Series Devices. The Touchbar Monitoring Switch is an internally mounted switch that is used to signal electromagnetic locks, horns, monitoring stations or other electronic components.
• UL Listed for Panic and Fire for Class II Circuitry.
• TS and TDS can be used in combination with all options.

TS (SPDT - Single Pole, Double Throw) version allows for interface with one external component. A (2) wire power transfer is required, not furnished standard.

TDS (DPDT - Double Pole, Double Throw) version allows for interface with two external components. A (4) wire power transfer is required, not furnished standard

Model: PHI Precision FL5108 689 36
