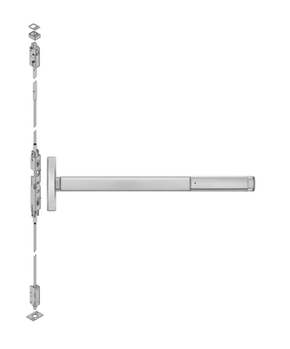

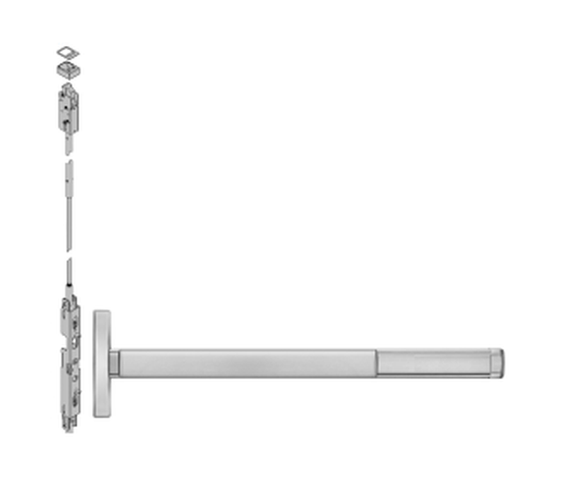

PHI Precision FL2614LBR Fire Rated Narrow Stile Concealed Vertical Rod Exit Device, Less Bottom Rod, No Cylinder Lever/Knob Always Active Prep (No Trim)

PHI Precision FL2614LBR Grade 1 Fire Rated Concealed Vertical Rod Exit Device, Narrow Stile Pushpad, No Cylinder Lever/Knob Always Active Prep (No Trim), Less Dogging, Less Bottom Rod

Trim Function: No Cylinder Lever/Knob Always Active Prep (No Trim)

Door Sizes: 36" For 2'-7" to 3' Width - 48" For 3'-1" to 4' Width

Height:
6'-8" to 8'-0" furnished standard.
8'-1" to 10'-0"

Functions: A Universal Exit Device

Handing: Field Reversible

Dogging: Less Dogging

Base Material: Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components

Chassis: Lock Stile Assembly - Investment Cast Steel, Zinc Dichromated.

Top Latchbolt: Stainless Steel, Deadlocking, 3/4" throw.

Center Chassis: Steel plated, heavy wrought Steel Assembly with lock in place Top and Bottom Latch Adjustors. Adjustment is accessible through the door after installation.

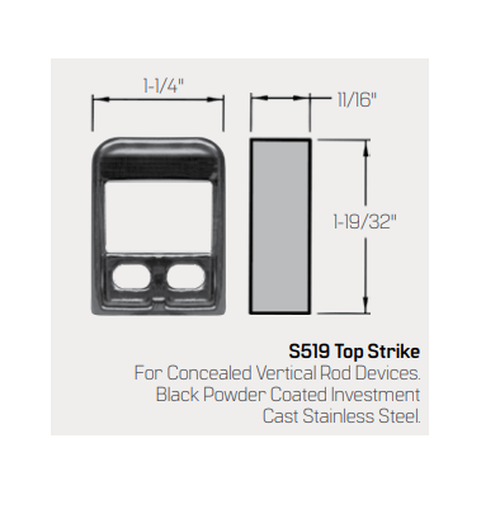

Top Strike: No. S519 Surface applied, Investment Cast Stainless Steel, Black Powder Coated.

Touchbar Height: 39-15/16" from floor standard.

UL Listed: Panic and Fire Exit Hardware. Conforms to UL10C and UBC 7-2.

ANSI/BHMA: Devices are BHMA certified for ANSI 156.3, Grade 1.

Cylinders: Use 1-1/4” long standard mortise cylinder. Cylinders are not furnished standard.

Finishes: 605, 606, 612, 613, 622, 625, 626W, 628, 630, 690

Electrical Options

ELR - Electric Latch Retraction
The ELR option provides remote Latch Retraction of exit devices. Continuous duty solenoids retract the Latchbolt(s) for momentary unlatching or continuously for dogging. The ELR feature can be interfaced with automatic door operators, card readers, push buttons, toggle/key switches, and fire alarm systems.

MLR - Motorized Latch Retraction
PRECISION Motorized Latch Retraction (MLR) exit devices feature the top-quality materials and robust engineering you expect from PRECISION, while reducing noise, lowering current requirements, and allowing for longer wire runs compared to power hungry solenoid-driven products. Perfect for use in applications that require more flexibility and quieter performance, PRECISION MLR engineering integrates easily with existing security frameworks

Monitoring Switches

TS - Touchbar Monitoring
TS - (SPDT - Single Pole, Double Throw) version allows for interface with one external component. A (2) wire power transfer is required, not furnished standard.

TDS – (DPDT - Double Pole, Double Throw) version allows for interface with two external components. A (4) wire power transfer is required, not furnished standard.

LS – (SPDT - Single Pole, Double Throw) version allows for interface with one external component. A (2) wire power transfer is required, not furnished standard.

LDS – (DPDT - Double Pole, Double Throw) version allows for interface with two external components. A (4) wire power transfer is required, not furnished standard.

Model: PHI Precision FL2614LBR 628, FL2614LBR 605, FL2614LBR 606, FL2614LBR 612, FL2614LBR 613, FL2614LBR 625, FL2614LBR 630
