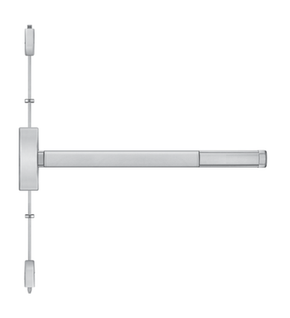

PHI Precision EFL2203 Fire Rated Electric Lock/Unlock Surface Vertical Rod Exit Device, Key Retracts Latchbolt Prep (No Trim)

PHI Precision EFL2203 Grade 1 Fire Rated Electric Lock/Unlock Surface Vertical Rod Exit Device, Key Retracts Latchbolt Prep (No Trim), Hex Key Dogging, Field Reversible

The Electric Device controls entry by remote locking or unlocking of the outside trim. In addition to a 24 VDC solenoid, the exit device is also equipped with a SPDT - single pole double throw switch. The switch monitors the outside trim (locked or unlocked).

The device is furnished standard as Fail Secure (FSE). When power is off the trim is locked. Power is applied to unlock the trim. May be field converted to the Fail Safe (FS) mode. (FS) - power is applied to lock the trim.

Note: The exit device can be used as a conduit for wiring to the hinge side of the door.

Trim Function: Key Retracts Latchbolt Prep (No Trim)

Door Sizes
Width:
36" - 2'-7" to 3' Door Width
48" - 3'-1" to 4' Door Width

Height:
7' - For 7’-0" doors
8' - For 8’-0" door
10' - For 10’-0" door

Dogging: Less Dogging

Handing: Field Reversible

Door Thickness: Available for 1-3/4" to 2-1/4" thick

Device: Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation

Base Material: The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.

Chassis: Investment Cast Steel, Zinc Dichromated.

Top Latchbolt: Stainless Steel, Deadlocking, 3/4" throw

Bottom Bolt: Steel plated, independent action 5/8" throw, with adjustment range to suit 3/4" door undercut.

Top Strike: No. S300 Surface applied, Investment Cast Stainless Steel, Black Powder Coated furnished standard.

Bottom Strike: No. S460, Flush mounted, Steel, Black Powder Coated.

Touchbar Height: 39-15/16" from floor standard. May be varied as situation dictates.

Reversible: Reversible for all functions and Trims. Standard packaging RHRB.

UL Listed: Panic and Fire Exit Hardware. Conforms to UL10C and UBC 7-2.

ANSI/BHMA: Devices are BHMA certified for ANSI 156.3, Grade 1.

Cylinders: Rim Type, not furnished standard.

Finishes: 605, 606, 612, 613, 622, 625, 626W, 628, 630, 690

Electrical Ratings
Switch rated to 2 Amps at 24VDC SPDT
Solenoid current draw: 0.3 Amps.

Retrofit Applications: The 2200 and FL2200 Series Devices are designed to retrofit into other manufacturers’ mounting hole locations. 1700 Series Pull Trim and 4900 Series Lever Trim may also be factory set for these applications by specifying prefix “R” (e.g. 2208 R4908A).

Precision 22 Series – Reversible
The 22 Series Device is designed to be compatible with many manufacturers’ Access Control exterior trim. The device incorporates a center driven cam to receive the tailpiece of the access control product. The tailpiece rotation required to retract the latch is a minimum of 50 degrees. Consult factory for details.

Model: PHI Precision EFL2203 628, EFL2203 605, EFL2203 606, EFL2203 612, EFL2203 613, EFL2203 625, EFL2203 630
