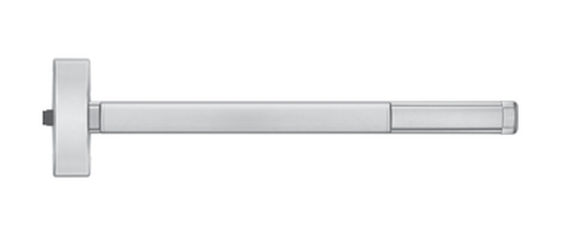

PHI Precision EFL2103 Fire Rated Electric Lock/Unlock Rim Exit Device, Key Retracts Latchbolt (No Trim)

PHI Precision EFL2103 Grade 1 Fire Rated Rim Exit Device, Wide Stile Pushpad, Storeroom Function, Less Dogging, Field Reversible

The Electric Device controls entry by remote locking or unlocking of the outside trim. In addition to a 24 VDC solenoid, the exit device is also equipped with a SPDT - single pole double throw switch. The switch monitors the outside trim (locked or unlocked).

The device is furnished standard as Fail Secure (FSE). When power is off the trim is locked. Power is applied to unlock the trim. May be field converted to the Fail Safe (FS) mode. (FS) - power is applied to lock the trim.

Note: The exit device can be used as a conduit for wiring to the hinge side of the door.

Trim Function: Key Retracts Latchbolt Prep (No Trim)

Door Sizes: 36" For 2'-7" to 3' Width - 48" For 3'-1" to 4' Width

Dogging: Less Dogging

Handing: Field Reversible

Door Thickness: Available for 1-3/4" to 2-1/4" thick

Device: Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation

Base Material: The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.

Chassis: Investment Cast Steel, Zinc Dichromated.

Latchbolt: Stainless Steel, Deadlocking, 3/4" throw.

Strikes: No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard.

Touchbar Height: 39-15/16" from floor standard. May be varied as situation dictates.

Reversible: Reversible for all functions and Trims. Standard packaging RHRB.

UL Listed: Panic and Fire Exit Hardware. Conforms to UL10C and UBC 7-2.

ANSI/BHMA: Devices are BHMA certified for ANSI 156.3, Grade 1.

Cylinders: Rim Type, not furnished standard.

Finishes: 605, 606, 612, 613, 622, 625, 626W, 628, 630, 690

Electrical Ratings
Switch rated to 2 Amps at 24VDC SPDT
Solenoid current draw: 0.3 Amps.

Retrofit Applications: The 2100 and FL2100 Series Devices are designed to retrofit into other manufacturers’ mounting hole locations. 1700 Series Pull Trim and 4900 Series Lever Trim may also be factory set for these applications by specifying prefix “R” (e.g. 2108 R4908A).

Precision 21 Series – Nonhanded
The 21 Series Device is designed to be compatible with many manufacturers’ Access Control exterior trim. The device incorporates a center driven cam to receive the tailpiece of the access control product. The tailpiece rotation required to retract the latch is a minimum of 50 degrees.

Model: PHI Precision EFL2103 628, EFL2103 605, EFL2103 606, EFL2103 612, EFL2103 613, EFL2103 625, EFL2103 630
