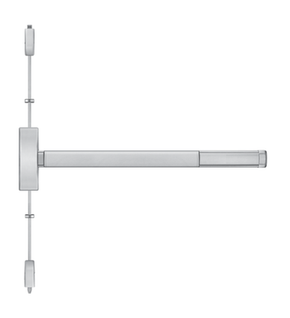

PHI Precision E2803 Electric Lock/Unlock Concealed Vertical Rod Exit Device, Key Retracts Latchbolt Prep (No Trim)

PHI Precision E2803 Grade 1 Electric Lock/Unlock Concealed Vertical Rod Exit Device, Key Retracts Latchbolt Prep (No Trim), Hex Key Dogging

The Electric Device controls entry by remote locking or unlocking of the outside trim. In addition to a 24 VDC solenoid, the exit device is also equipped with a SPDT - single pole double throw switch. The switch monitors the outside trim (locked or unlocked).

The device is furnished standard as Fail Secure (FSE). When power is off the trim is locked. Power is applied to unlock the trim. May be field converted to the Fail Safe (FS) mode. (FS) - power is applied to lock the trim.

Note: The exit device can be used as a conduit for wiring to the hinge side of the door.

Trim Function: Key Retracts Latchbolt Prep (No Trim)

Door Sizes: 36" For 2'-7" to 3' Width - 48" For 3'-1" to 4' Width

Height:
• 6'-8" to 8'-0" (furnished standard).
• 8'-1" to 10'-0"

Doors: For all types of single and double door applications.

Functions: Functions are field selectable. The device is furnished for a desired function if specified. If not specified the “03” function is furnished standard.

Dogging: 1/4" turn hex key dogging standard. NOT available on Fire Exit Hardware.

Base Material: The Cover, Touchbar, Device Channel, Lock/ Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. US28 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components

Chassis: Lock Stile Assembly - Investment Cast Steel, Zinc Dichromated

Vertical Rods: Steel, plated. Top Rod is adjustable from 6'-8" to 8'-0" or from 8'-1" to 10'-0"

Top Latchbolt: Stainless Steel, Deadlocking, 3/4" throw.

Bottom Bolt: Steel plated, independent action 5/8" throw, with adjustment range to suit 3/4" door undercut.

Top Strike: No. S519 Surface applied, Investment Cast Stainless Steel, Black Powder Coated.

Center Chassis: Steel plated, heavy wrought Steel Assembly with lock in place Top and Bottom Latch Adjustors. Adjustment accessible through the door after installation.

Bottom Strike: No. S460, Flush mounted, Steel, Black Powder Coated.

Touchbar Height: 39-15/16" from floor standard. Specify required height if other than standard.

Reversible: Reversible for all functions and trims. Standard packaging RHRB.

UL Listed: Panic and Fire Exit Hardware. Conforms to UL10C and UBC 7-2.

ANSI/BHMA: Devices are BHMA certified for ANSI 156.3, Grade 1.

Cylinders: Rim Type, not furnished standard.

Finishes: 605, 606, 612, 613, 622, 625, 626W, 628, 630, 690

Electrical Ratings
Switch rated to 2 Amps at 24VDC SPDT
Solenoid current draw: 0.3 Amps.

Model: PHI Precision E2803 628, E2803 605, E2803 606, E2803 612, E2803 613, E2803 625, E2803 630
