PHI Precision CM150-08 Control Module for ELR150 Series Power Supply

PHI CM150-08 Control Module (on/off adjustable Time Delay standard) for ELR150 Series Power Supply

Control Module

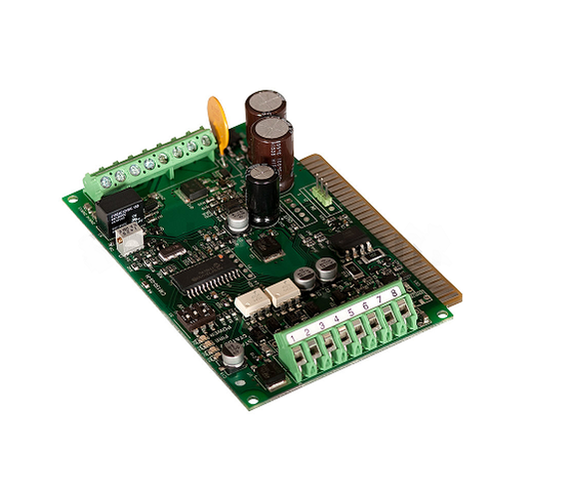

The CM150-08 Control Module is a card that is installed in the ELR150 Series Power Supply and controls one ELR device and includes a Time Delay Feature. The Time Delay provides a variable Latch Retraction period in response to a momentary input

Specifications
Input
Switch Input
• Normally open

Voltage Input
• Input Voltage: 5-24VDC or VAC
• Input Current: approx. 0.005 Amp.
• Minimum pulse width: 0.25 seconds

Output
• Current Pulse: 4.75 Amp. (2 seconds max.)
• Continuous: 3.6 VDC / 0.8 Amp.

Time Delay
User selectable: 0-4 minutes delay after input is removed

Fire Alarm Terminal
• Red LED (D3) blinks when Fire Alarm interrupts circuit
• Provides immediate termination of output

Switch Input
Accepts normally closed contacts or 5-24 Volts from a listed fire detecting device.

Voltage Input
• Input Current: 0.005 Amp.
• Minimum pulse width: 0.25 seconds

Auxiliary Contacts
• Relay isolated contacts provided for remote signaling (e.g. door operator)
• Normally open or normally closed contacts are rated at 0.5 Amp., 24VDC or VAC
• Contact operation follows successful operation of the ELR device.

Model: PHI Precision CM150-08
