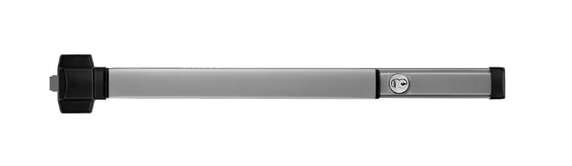

PHI Precision 5114CD Cylinder Dogging Rim Exit Device, No Cylinder Lever Always Active Prep (No Trim)

PHI Precision 5114CD Grade 1 Rim Exit Device, No Cylinder Lever Always Active Prep (No Trim), Cylinder Dogging

Trim Function: No Cylinder Lever Always Active Prep (No Trim)

Door Sizes: 36" For 2'-7" to 3' Width - 48" For 3'-1" to 4' Width

Cylinder Dogging: Cylinder Dogging provides the ability to lock down the touch bar with a key cylinder so the door can be used in the push/pull mode. Requires the use of a 1-1/4" mortise cylinder, not furnished standard.

Fasteners: Furnished standard with machine screws and full thread wood/sheet metal screws.

Doors: For all types of single and double doors with a mullion. Available for 1-3/4" to 2-1/4" thick, up to 4'-0" wide openings

Handing: Non handed

Dogging: Cylinder Dogging (cylinder sold separately)

Active Case & Trim: Covers ANSI A115.2 (Type 161) or ANSI A115.18 cylinder lock preparation. Active Case through bolts in ANSI A115.18 preparation without additional machining.

Active Case Cover & Endcap: High Impact Thermoplastic.

Active Case: Stainless Steel

Touchbar Sub-Assembly: Zinc Dichromate plated Heavy Wrought Steel.

Touchbar Assembly: Powder Coated Heavy Wrought Steel.

Strike: No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard

Latchbolt: Stainless Steel, Deadlocking, 3/4" throw.

Touchbar Height: 40-5/16" from floor standard. May be varied as situation dictates.

UL Listed: Panic and Fire Exit Hardware. Conforms to UL10C and UBC 7-2.

ANSI/BHMA: Devices are BHMA certified for ANSI 156.3, Grade 1.

Finishes: 689 Aluminum Powder Coat, 695 Dark Bronze Powder Coat

Touchbar Monitoring
Available for all Precision Series Devices. The Touchbar Monitoring Switch is an internally mounted switch that is used to signal electromagnetic locks, horns, monitoring stations or other electronic components.
• UL Listed for Panic and Fire for Class II Circuitry.
• TS and TDS can be used in combination with all options.

TS (SPDT - Single Pole, Double Throw) version allows for interface with one external component. A (2) wire power transfer is required, not furnished standard.

TDS (DPDT - Double Pole, Double Throw) version allows for interface with two external components. A (4) wire power transfer is required, not furnished standard

Electrical Ratings
TS: Switch rated to 2 Amps at 24VDC SPDT
TDS: Switch rated to 2 Amps at 24VDC DPDT

Model: PHI Precision 5114CD 689, 5114CD 695
