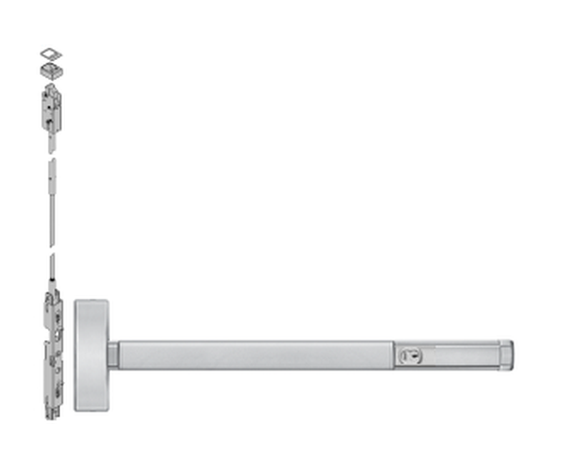

PHI Precision 2801LBRCD Cylinder Dogging Concealed Vertical Rod Exit Device, Less Bottom Rod, Exit Only

PHI Precision 2801LBRCD Grade 1 Concealed Vertical Rod Exit Device, Exit Only (Cover Plate Prep) Function, Cylinder Dogging, Less Bottom Rod

Trim Function: No trim - Exit Only (cover plate prep)

Cylinder Dogging
Cylinder Dogging provides the ability to lock down the touch bar with a key cylinder so the door can be used in the push/pull mode. Requires the use of a 1-1/4" mortise cylinder, not furnished standard.

Door Sizes: 36" For 2'-7" to 3' Width - 48" For 3'-1" to 4' Width

Height:
• 6'-8" to 8'-0" (furnished standard).
• 8'-1" to 10'-0"

Doors: For all types of single and double door applications.

Functions: Functions are field selectable. The device is furnished for a desired function if specified. If not specified the “03” function is furnished standard.

Dogging: Cylinder Dogging (cylinder sold separately)

Base Material: The Cover, Touchbar, Device Channel, Lock/ Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. US28 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components

Chassis: Lock Stile Assembly - Investment Cast Steel, Zinc Dichromated

Vertical Rods: Steel, plated. Top Rod is adjustable from 6'-8" to 8'-0" or from 8'-1" to 10'-0"

Top Latchbolt: Stainless Steel, Deadlocking, 3/4" throw.

Top Strike: No. S519 Surface applied, Investment Cast Stainless Steel, Black Powder Coated.

Center Chassis: Steel plated, heavy wrought Steel Assembly with lock in place Top and Bottom Latch Adjustors. Adjustment accessible through the door after installation.

Touchbar Height: 39-15/16" from floor standard. Specify required height if other than standard.

Reversible: Reversible for all functions and trims. Standard packaging RHRB.

UL Listed: Panic and Fire Exit Hardware. Conforms to UL10C and UBC 7-2.

ANSI/BHMA: Devices are BHMA certified for ANSI 156.3, Grade 1.

Cylinders: Rim Type, not furnished standard.

Finishes: 605, 606, 612, 613, 622, 625, 626W, 628, 630, 690

Electrical Options

ELR - Electric Latch Retraction
The ELR option provides remote Latch Retraction of exit devices. Continuous duty solenoids retract the Latchbolt(s) for momentary unlatching or continuously for dogging. The ELR feature can be interfaced with automatic door operators, card readers, push buttons, toggle/key switches, and fire alarm systems.

Monitoring Switches

TS - (SPDT - Single Pole, Double Throw) version allows for interface with one external component. A (2) wire power transfer is required, not furnished standard.

TDS – (DPDT - Double Pole, Double Throw) version allows for interface with two external components. A (4) wire power transfer is required, not furnished standard.

LS – (SPDT - Single Pole, Double Throw) version allows for interface with one external component. A (2) wire power transfer is required, not furnished standard.

LDS – (DPDT - Double Pole, Double Throw) version allows for interface with two external components. A (4) wire power transfer is required, not furnished standard.

Model: PHI Precision 2801LBRCD 628, 2801LBRCD605, 2801LBRCD606, 2801LBRCD612, 2801LBRCD613, 2801LBRCD625, 2801LBRCD630
