PHI Precision 2702LBRCD Cylinder Dogging Wood Door Concealed Vertical Rod Exit Device, Less Bottom Rod, Dummy Trim Prep

PHI Precision 2702LBRCD Grade 1 Wood Door Concealed Vertical Rod Exit Device, Dummy Trim Function, Cylinder Dogging, Less Bottom Rod

Trim Function: Dummy Trim Prep

Cylinder Dogging
Cylinder Dogging provides the ability to lock down the touch bar with a key cylinder so the door can be used in the push/pull mode. Requires the use of a 1-1/4" mortise cylinder, not furnished standard.

Door Sizes: 36" For 2'-7" to 3' Width - 48" For 3'-1" to 4' Width

Height:
• 6'-8" to 8'-0" (furnished standard).
• 8'-1" to 10'-0"

Door Thickness: Available for 1-3/4" to 2-1/4" thick

Functions: A Universal Exit Device

Dogging: Cylinder Dogging (cylinder sold separately)

Base Material: Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components

Chassis: Lock Stile Assembly - Investment Cast Steel, Zinc Dichromated.

Vertical Rods: Steel, plated. Top Rod is adjustable from 6'-8" to 8'-0" or from 8'-1" to 10'-0". Additional adjustments are available through the lock front filler

Top Latchbolt: Stainless Steel, Deadlocking, 3/4" throw.

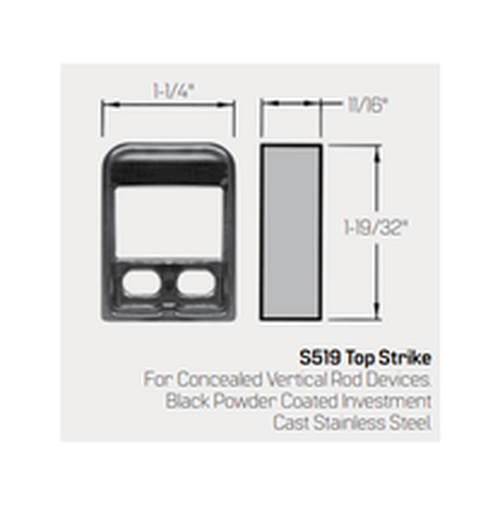

Top Strike: No. S519 Surface applied, Investment Cast Stainless Steel, Black Powder Coated.

Touchbar Height: 39-15/16" from floor standard.

Reversible: Reversible for all functions and trims. Standard packaging RHRB.

UL Listed: Panic and Fire Exit Hardware. Conforms to UL10C and UBC 7-2.

ANSI/BHMA: Devices are BHMA certified for ANSI 156.3, Grade 1.

Cylinders: Rim Type, not furnished standard.

Finishes: 605, 606, 612, 613, 622, 625, 626W, 628, 630, 690

Electrical Options

ELR - Electric Latch Retraction
The ELR option provides remote Latch Retraction of exit devices. Continuous duty solenoids retract the Latchbolt(s) for momentary unlatching or continuously for dogging. The ELR feature can be interfaced with automatic door operators, card readers, push buttons, toggle/key switches, and fire alarm systems.

Monitoring Switches

TS - (SPDT - Single Pole, Double Throw) version allows for interface with one external component. A (2) wire power transfer is required, not furnished standard.

TDS – (DPDT - Double Pole, Double Throw) version allows for interface with two external components. A (4) wire power transfer is required, not furnished standard.

LS – (SPDT - Single Pole, Double Throw) version allows for interface with one external component. A (2) wire power transfer is required, not furnished standard.

LDS – (DPDT - Double Pole, Double Throw) version allows for interface with two external components. A (4) wire power transfer is required, not furnished standard.

Model: PHI Precision 2702LBRCD 628, 2702LBRCD 605, 2702LBRCD 606, 2702LBRCD 612, 2702LBRCD 613, 2702LBRCD 625, 2702LBRCD 630
