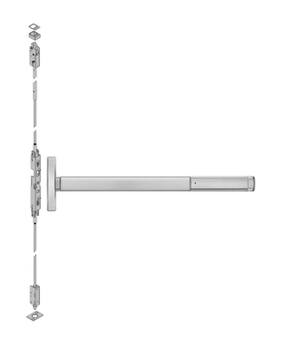

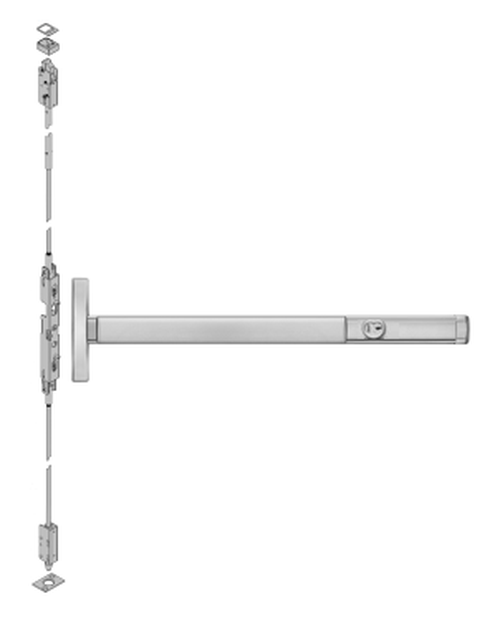

PHI Precision 2602CD Cylinder Dogging Narrow Stile Concealed Vertical Rod Exit Device, Dummy Trim Prep

PHI Precision 2602CD Grade 1 Concealed Vertical Rod Exit Device, Narrow Stile Pushpad, Dummy Trim Function, Cylinder Dogging

Trim Function: Dummy Trim Prep

Cylinder Dogging
Cylinder Dogging provides the ability to lock down the touch bar with a key cylinder so the door can be used in the push/pull mode. Requires the use of a 1-1/4" mortise cylinder, not furnished standard.

Door Sizes: 36" For 2'-7" to 3' Width - 48" For 3'-1" to 4' Width

Height:
6'-8" to 8'-0" furnished standard.
8'-1" to 10'-0"

Functions: A Universal Exit Device

Handing: Field Reversible

Dogging: Cylinder Dogging (cylinder sold separately)

Base Material: Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components

Chassis: Lock Stile Assembly - Investment Cast Steel, Zinc Dichromated.

Top Latchbolt: Stainless Steel, Deadlocking, 3/4" throw.

Bottom Bolt: Steel plated, independent action 5/8" throw, with adjustment range to suit 3/4" door undercut.

Center Chassis: Steel plated, heavy wrought Steel Assembly with lock in place Top and Bottom Latch Adjustors. Adjustment is accessible through the door after installation.

Top Strike: No. S519 Surface applied, Investment Cast Stainless Steel, Black Powder Coated.

Bottom Strike: No. S460, Flush mounted, Steel, Black Powder Coated.

Touchbar Height: 39-15/16" from floor standard.

UL Listed: Panic and Fire Exit Hardware. Conforms to UL10C and UBC 7-2.

ANSI/BHMA: Devices are BHMA certified for ANSI 156.3, Grade 1.

Cylinders: Use 1-1/4” long standard mortise cylinder. Cylinders are not furnished standard.

Finishes: 605, 606, 612, 613, 622, 625, 626W, 628, 630, 690

Electrical Options

ELR - Electric Latch Retraction
The ELR option provides remote Latch Retraction of exit devices. Continuous duty solenoids retract the Latchbolt(s) for momentary unlatching or continuously for dogging. The ELR feature can be interfaced with automatic door operators, card readers, push buttons, toggle/key switches, and fire alarm systems.

Monitoring Switches

TS - Touchbar Monitoring
TS - (SPDT - Single Pole, Double Throw) version allows for interface with one external component. A (2) wire power transfer is required, not furnished standard.

TDS – (DPDT - Double Pole, Double Throw) version allows for interface with two external components. A (4) wire power transfer is required, not furnished standard.

LS – (SPDT - Single Pole, Double Throw) version allows for interface with one external component. A (2) wire power transfer is required, not furnished standard.

LDS – (DPDT - Double Pole, Double Throw) version allows for interface with two external components. A (4) wire power transfer is required, not furnished standard.

Model: PHI Precision 2602CD 628, 2602CD 605, 2602CD 606, 2602CD 612, 2602CD 613, 2602CD 625, 2602CD 630
