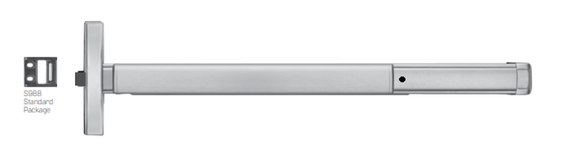

PHI Precision 2408 Narrow Stile Rim Exit Device, Key Locks/Unlocks Lever/Knob Prep (No Trim)

PHI Precision 2408 Grade 1 Rim Exit Device, Narrow Stile Pushpad, Key Locks/Unlocks Lever/Knob Prep (No Trim), Hex Key Dogging

Trim Function: Key Locks/Unlocks Lever/Knob Prep (No Trim)

Door Sizes: 36" For 2'-7" to 3' Width - 48" For 3'-1" to 4' Width

Functions: A Universal Exit Device

Dogging: 1/4" turn hex key dogging standard. NOT available on Fire Exit Hardware.

Base Material: The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.

Chassis: Investment Cast Steel, Zinc Dichromated.

Latchbolt: Stainless Steel, Deadlocking, 3/4" throw.

Strikes: No. S988, standard package for Aluminum Door applications, Black Powder Coated Stainless Steel Roller Strike

Touchbar Height: 39-15/16" from floor standard. May be varied as situation dictates.

UL Listed: Panic and Fire Exit Hardware. Conforms to UL10C and UBC 7-2.

ANSI/BHMA: Devices are BHMA certified for ANSI 156.3, Grade 1.

Cylinders: Mortise type for “08” function. Cylinders are not furnished standard.

Finishes: 605, 606, 612, 613, 622, 625, 626W, 628, 630, 690

Electrical Options

ELR - Electric Latch Retraction
The ELR option provides remote Latch Retraction of exit devices. Continuous duty solenoids retract the Latchbolt(s) for momentary unlatching or continuously for dogging. The ELR feature can be interfaced with automatic door operators, card readers, push buttons, toggle/key switches, and fire alarm systems.

Monitoring Switches

TS - Touchbar Monitoring
TS - (SPDT - Single Pole, Double Throw) version allows for interface with one external component. A (2) wire power transfer is required, not furnished standard.

TDS – (DPDT - Double Pole, Double Throw) version allows for interface with two external components. A (4) wire power transfer is required, not furnished standard.

LS – (SPDT - Single Pole, Double Throw) version allows for interface with one external component. A (2) wire power transfer is required, not furnished standard.

LDS – (DPDT - Double Pole, Double Throw) version allows for interface with two external components. A (4) wire power transfer is required, not furnished standard.

Model: PHI Precision 2408 628, 2408 605, 2408 606, 2408 612, 2408 613, 2408 625, 2408 630
