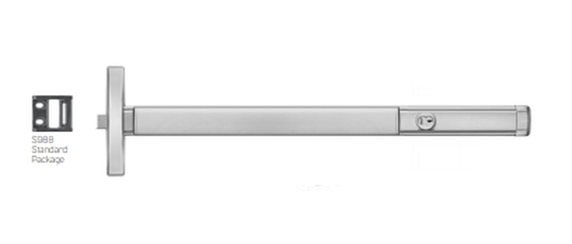

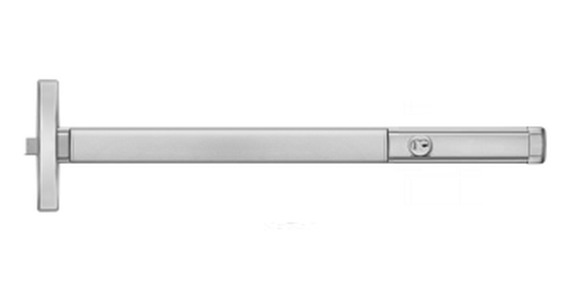

PHI Precision 2403CD Cylinder Dogging Narrow Stile Rim Exit Device, Key Retracts Latchbolt Prep (No Trim)

PHI Precision 2403CD Grade 1 Rim Exit Device, Narrow Stile Pushpad, Key Retracts Latchbolt Prep (No Trim), Cylinder Dogging

Trim Function: Key Retracts Latchbolt Prep (No Trim)

Cylinder Dogging
Cylinder Dogging provides the ability to lock down the touch bar with a key cylinder so the door can be used in the push/pull mode. Requires the use of a 1-1/4" mortise cylinder, not furnished standard.

Door Sizes: 36" For 2'-7" to 3' Width - 48" For 3'-1" to 4' Width

Functions: A Universal Exit Device

Dogging: Cylinder Dogging (cylinder sold separately)

Base Material: The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.

Chassis: Investment Cast Steel, Zinc Dichromated.

Latchbolt: Stainless Steel, Deadlocking, 3/4" throw.

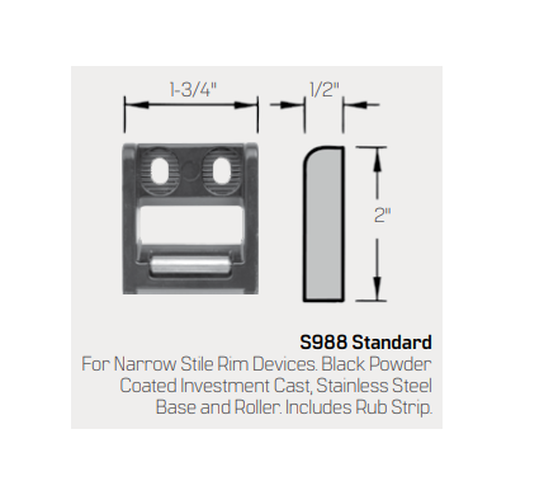

Strikes: No. S988, standard package for Aluminum Door applications, Black Powder Coated Stainless Steel Roller Strike

Touchbar Height: 39-15/16" from floor standard. May be varied as situation dictates.

UL Listed: Panic and Fire Exit Hardware. Conforms to UL10C and UBC 7-2.

ANSI/BHMA: Devices are BHMA certified for ANSI 156.3, Grade 1.

Cylinders: Rim Type for “03” function. Cylinders are not furnished standard.

Finishes: 605, 606, 612, 613, 622, 625, 626W, 628, 630, 690

Electrical Options

ELR - Electric Latch Retraction
The ELR option provides remote Latch Retraction of exit devices. Continuous duty solenoids retract the Latchbolt(s) for momentary unlatching or continuously for dogging. The ELR feature can be interfaced with automatic door operators, card readers, push buttons, toggle/key switches, and fire alarm systems.

Monitoring Switches

TS - (SPDT - Single Pole, Double Throw) version allows for interface with one external component. A (2) wire power transfer is required, not furnished standard.

TDS – (DPDT - Double Pole, Double Throw) version allows for interface with two external components. A (4) wire power transfer is required, not furnished standard.

LS – (SPDT - Single Pole, Double Throw) version allows for interface with one external component. A (2) wire power transfer is required, not furnished standard.

LDS – (DPDT - Double Pole, Double Throw) version allows for interface with two external components. A (4) wire power transfer is required, not furnished standard.

Model: PHI Precision 2403CD 628, 2403CD 605, 2403CD 606, 2403CD 612, 2403CD 613, 2403CD 625, 2403CD 630
