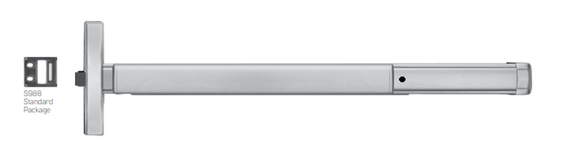

PHI Precision 2402 Narrow Stile Rim Exit Device, Dummy Trim Prep

PHI Precision 2402 Grade 1 Rim Exit Device, Narrow Stile Pushpad, Dummy Trim Function, Hex Key Dogging

Trim Function: Dummy Trim Prep

Door Sizes: 36" For 2'-7" to 3' Width - 48" For 3'-1" to 4' Width

Functions: A Universal Exit Device

Dogging: 1/4" turn hex key dogging standard. NOT available on Fire Exit Hardware.

Base Material: The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.

Chassis: Investment Cast Steel, Zinc Dichromated.

Latchbolt: Stainless Steel, Deadlocking, 3/4" throw.

Strikes: No. S988, standard package for Aluminum Door applications, Black Powder Coated Stainless Steel Roller Strike

Touchbar Height: 39-15/16" from floor standard. May be varied as situation dictates.

UL Listed: Panic and Fire Exit Hardware. Conforms to UL10C and UBC 7-2.

ANSI/BHMA: Devices are BHMA certified for ANSI 156.3, Grade 1.

Cylinders: Use 1-1/4” long standard mortise cylinder. Cylinders are not furnished standard.

Finishes: 605, 606, 612, 613, 622, 625, 626W, 628, 630, 690

Electrical Options

ELR - Electric Latch Retraction
The ELR option provides remote Latch Retraction of exit devices. Continuous duty solenoids retract the Latchbolt(s) for momentary unlatching or continuously for dogging. The ELR feature can be interfaced with automatic door operators, card readers, push buttons, toggle/key switches, and fire alarm systems.

Monitoring Switches

TS - Touchbar Monitoring
TS - (SPDT - Single Pole, Double Throw) version allows for interface with one external component. A (2) wire power transfer is required, not furnished standard.

TDS – (DPDT - Double Pole, Double Throw) version allows for interface with two external components. A (4) wire power transfer is required, not furnished standard.

LS – (SPDT - Single Pole, Double Throw) version allows for interface with one external component. A (2) wire power transfer is required, not furnished standard.

LDS – (DPDT - Double Pole, Double Throw) version allows for interface with two external components. A (4) wire power transfer is required, not furnished standard.

Model: PHI Precision 2402 628, 2402 605, 2402 606, 2402 612, 2402 613, 2402 625, 2402 630
