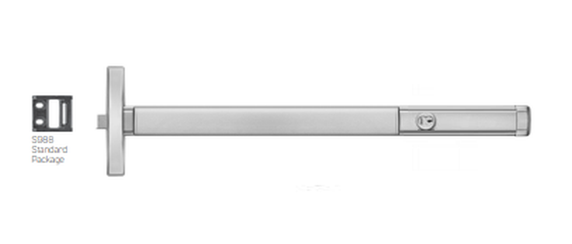

PHI Precision 2401CD Cylinder Dogging Narrow Stile Rim Exit Device, Exit Only

PHI Precision 2401CD Grade 1 Rim Exit Device, Narrow Stile Pushpad, Exit Only (Cover Plate Prep) Function, Cylinder Dogging

Trim Function: No trim - Exit Only (cover plate prep)

Cylinder Dogging
Cylinder Dogging provides the ability to lock down the touch bar with a key cylinder so the door can be used in the push/pull mode. Requires the use of a 1-1/4" mortise cylinder, not furnished standard.

Door Sizes: 36" For 2'-7" to 3' Width - 48" For 3'-1" to 4' Width

Functions: A Universal Exit Device

Dogging: Cylinder Dogging (cylinder sold separately)

Base Material: The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.

Chassis: Investment Cast Steel, Zinc Dichromated.

Latchbolt: Stainless Steel, Deadlocking, 3/4" throw.

Strikes: No. S988, standard package for Aluminum Door applications, Black Powder Coated Stainless Steel Roller Strike

Touchbar Height: 39-15/16" from floor standard. May be varied as situation dictates.

UL Listed: Panic and Fire Exit Hardware. Conforms to UL10C and UBC 7-2.

ANSI/BHMA: Devices are BHMA certified for ANSI 156.3, Grade 1.

Cylinders: Use 1-1/4” long standard mortise cylinder. Cylinders are not furnished standard.

Finishes: 605, 606, 612, 613, 622, 625, 626W, 628, 630, 690

Electrical Options

ELR - Electric Latch Retraction
The ELR option provides remote Latch Retraction of exit devices. Continuous duty solenoids retract the Latchbolt(s) for momentary unlatching or continuously for dogging. The ELR feature can be interfaced with automatic door operators, card readers, push buttons, toggle/key switches, and fire alarm systems.

Monitoring Switches

TS - Touchbar Monitoring
TS - (SPDT - Single Pole, Double Throw) version allows for interface with one external component. A (2) wire power transfer is required, not furnished standard.

TDS – (DPDT - Double Pole, Double Throw) version allows for interface with two external components. A (4) wire power transfer is required, not furnished standard.

LS – (SPDT - Single Pole, Double Throw) version allows for interface with one external component. A (2) wire power transfer is required, not furnished standard.

LDS – (DPDT - Double Pole, Double Throw) version allows for interface with two external components. A (4) wire power transfer is required, not furnished standard.

Model: PHI Precision 2401CD 628, 2401CD 605, 2401CD 606, 2401CD 612, 2401CD 613, 2401CD 625, 2401CD 630
