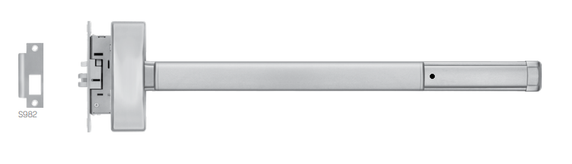

PHI Precision 2302 Mortise Exit Device, Dummy Trim Prep

PHI Precision 2302 Grade 1 Mortise Exit Device, Wide Stile Pushpad, Dummy Trim Function, Hex Key Dogging, Field Reversible

Trim Function: Dummy Trim Prep

Door Sizes
Width:
36" - 2'-7" to 3' Door Width
48" - 3'-1" to 4' Door Width

Dogging: 1/4" turn hex key dogging standard. NOT available on Fire Exit Hardware.

Handing: Handed

Device: Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation

Base Material: The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.

Chassis: Investment Cast Steel, Zinc Dichromated.

Latchbolt: Stainless Steel, Deadlocking, 3/4" throw, anti-friction

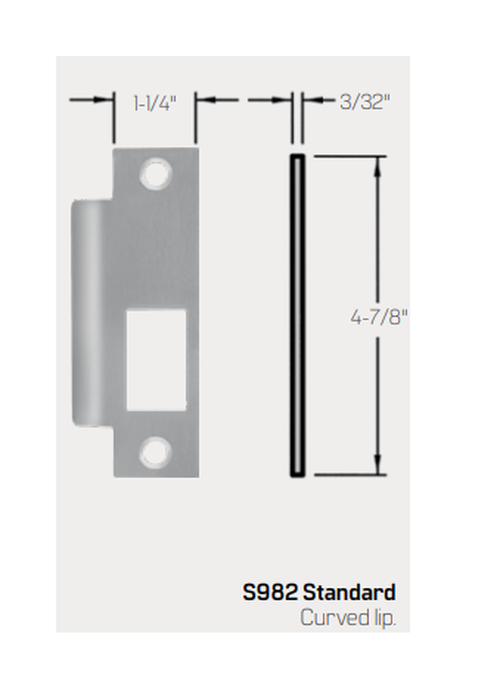

Strike: No. S982, handed curved lip strike furnished standard

Touchbar Height: 39-15/16" from floor standard. May be varied as situation dictates.

UL Listed: Panic and Fire Exit Hardware. Conforms to UL10C and UBC 7-2.

ANSI/BHMA: Devices are BHMA certified for ANSI 156.3, Grade 1.

Cylinders: Mortise Type, not furnished standard.

Retrofit Applications: The 2300 and FL2300 Series Devices are designed to retrofit into other manufacturers’ mounting hole locations. 1700 Series Pull Trim and 4900 Series Lever Trim may also be factory set for these applications by specifying prefix “R” (e.g. 2308 R4908A). Consult factory for details.

Exit Series: Handed Fits doors machined per ANSI A115.1 (Type 86) Mortise Lock preparation.

Backset: 2-3/4".

Case: Wrought Steel, Zinc Dichromate finish.

Lock Front Plate: 8" x 1-1/4" Bronze, Brass or Stainless Steel, pivots for beveled or square edged doors

Guardbolt: Stainless Steel, sliding type

Finishes: 605, 606, 612, 613, 622, 625, 626W, 628, 630, 690

Model: PHI Precision 2302 628, 2302 605, 2302 606, 2302 612, 2302 613, 2302 625, 2302 630
