PHI Precision 2208LBR Surface Vertical Rod Exit Device, Key Locks/Unlocks Lever/Knob Prep (No Trim), Less Bottom Rod

PHI Precision 2208LBR Grade 1 Surface Vertical Rod Exit Device, Wide Stile Pushpad, Key Locks/Unlocks Lever/Knob Prep (No Trim), Hex Key Dogging, Less Bottom Rod, Field Reversible

Trim Function: Key Locks/Unlocks Lever/Knob Prep (No Trim)

Door Sizes
Width:
36" - 2'-7" to 3' Door Width
48" - 3'-1" to 4' Door Width

Height:
7' - For 7’-0" doors
8' - For 8’-0" door
10' - For 10’-0" door
12' - For 12’-0" door
(Note: 12’-0" top rod is Not available in “FL" fire rated option.)

Dogging: 1/4" turn hex key dogging standard. NOT available on Fire Exit Hardware.

Handing: Field Reversible

Door Thickness: Available for 1-3/4" to 2-1/4" thick

Device: Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation

Base Material: The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.

Chassis: Investment Cast Steel, Zinc Dichromated.

Top Latchbolt: Stainless Steel, Deadlocking, 3/4" throw

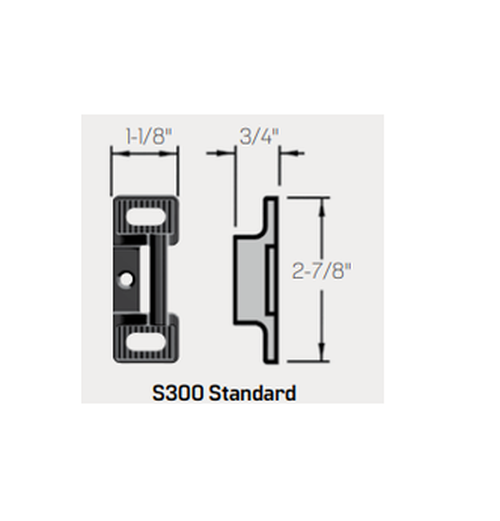

Top Strike: No. S300 Surface applied, Investment Cast Stainless Steel, Black Powder Coated furnished standard.

Touchbar Height: 39-15/16" from floor standard. May be varied as situation dictates.

Reversible: Reversible for all functions and Trims. Standard packaging RHRB.

UL Listed: Panic and Fire Exit Hardware. Conforms to UL10C and UBC 7-2.

ANSI/BHMA: Devices are BHMA certified for ANSI 156.3, Grade 1.

Cylinders: Rim Type, not furnished standard.

Finishes: 605, 606, 612, 613, 622, 625, 626W, 628, 630, 690

Retrofit Applications: The 2200 and FL2200 Series Devices are designed to retrofit into other manufacturers’ mounting hole locations. 1700 Series Pull Trim and 4900 Series Lever Trim may also be factory set for these applications by specifying prefix “R” (e.g. 2208 R4908A).

Precision 22 Series – Reversible
The 22 Series Device is designed to be compatible with many manufacturers’ Access Control exterior trim. The device incorporates a center driven cam to receive the tailpiece of the access control product. The tailpiece rotation required to retract the latch is a minimum of 50 degrees. Consult factory for details.

Model: PHI Precision 2208LBR 628, 2208LBR 605, 2208LBR 606, 2208LBR 612, 2208LBR 613, 2208LBR 625, 2208LBR 630
