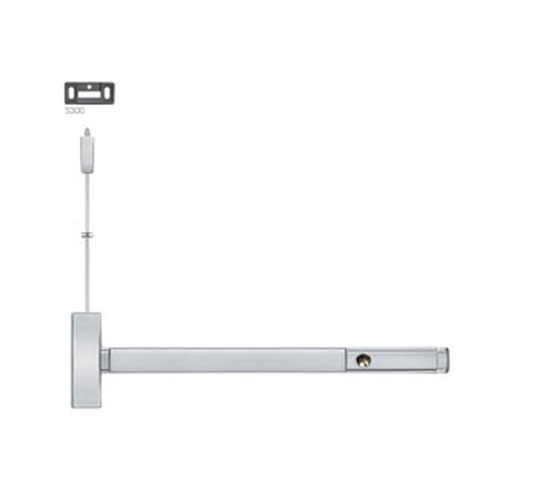

PHI Precision 2201LBRCD Cylinder Dogging Surface Vertical Rod Exit Device, Exit Only, Less Bottom Rod

PHI Precision 2201LBRCD Grade 1 Surface Vertical Rod Exit Device, Wide Stile Pushpad, Exit Only (Cover Plate Prep) Function,  Cylinder Dogging, Less Bottom Rod, Field Reversible

Trim Function: No trim - Exit Only (cover plate prep)

Cylinder Dogging
Cylinder Dogging provides the ability to lock down the touch bar with a key cylinder so the door can be used in the push/pull mode. Requires the use of a 1-1/4" mortise cylinder, not furnished standard.

Door Sizes
Width:
36" - 2'-7" to 3' Door Width
48" - 3'-1" to 4' Door Width

Height:
7' - For 7’-0" doors
8' - For 8’-0" door Heights
10' - For 10’-0" door Heights
12' - For 12’-0" door Heights
(Note: 12’-0" top rod is Not available in “FL" fire rated option.)

Dogging: Cylinder Dogging (cylinder sold separately)

Fasteners: Furnished standard with machine screws and full thread wood/sheet metal screws.

Handing: Field Reversible

Door Thickness: Available for 1-3/4" to 2-1/4" thick

Device: Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation

Base Material: The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.

Chassis: Investment Cast Steel, Zinc Dichromated.

Top Latchbolt: Stainless Steel, Deadlocking, 3/4" throw

Top Strike: No. S300 Surface applied, Investment Cast Stainless Steel, Black Powder Coated furnished standard.

Touchbar Height: 39-15/16" from floor standard. May be varied as situation dictates.

Reversible: Reversible for all functions and Trims. Standard packaging RHRB.

UL Listed: Panic and Fire Exit Hardware. Conforms to UL10C and UBC 7-2.

ANSI/BHMA: Devices are BHMA certified for ANSI 156.3, Grade 1.

Cylinders: Rim Type, not furnished standard.

Finishes: 605, 606, 612, 613, 622, 625, 626W, 628, 630, 690

Retrofit Applications: The 2200 and FL2200 Series Devices are designed to retrofit into other manufacturers’ mounting hole locations. 1700 Series Pull Trim and 4900 Series Lever Trim may also be factory set for these applications by specifying prefix “R” (e.g. 2208 R4908A).

Precision 22 Series – Reversible
The 22 Series Device is designed to be compatible with many manufacturers’ Access Control exterior trim. The device incorporates a center driven cam to receive the tailpiece of the access control product. The tailpiece rotation required to retract the latch is a minimum of 50 degrees. Consult factory for details.

Electrical Options
ELR - Electric Latch Retraction
The ELR option provides remote Latch Retraction of exit devices. Continuous duty solenoids retract the Latchbolt(s) for momentary unlatching or continuously for dogging. The ELR feature can be interfaced with automatic door operators, card readers, push buttons, toggle/key switches, and fire alarm systems.

Model: PHI Precision 2201LBRCD 628, 2201LBRCD 605, 2201LBRCD 606, 2201LBRCD 612, 2201LBRCD 613, 2201LBRCD 625, 2201LBRCD 630
