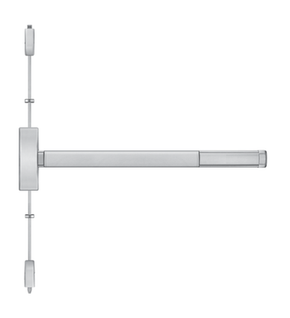

PHI Precision 2201 Surface Vertical Rod Exit Device, Exit Only

PHI Precision 2201 Grade 1 Surface Vertical Rod Exit Device, Wide Stile Pushpad, Exit Only (Cover Plate Prep) Function, Hex Key Dogging, Field Reversible

Trim Function: No trim - Exit Only (cover plate prep)

Door Sizes
Width:
36" - 2'-7" to 3' Door Width
48" - 3'-1" to 4' Door Width

Height:
7' - For 7’-0" doors
8' - For 8’-0" door Heights
10' - For 10’-0" door Heights
12' - For 12’-0" door Heights
(Note: 12’-0" top rod is Not available in “FL" fire rated option.)

Dogging: 1/4" turn hex key dogging standard. NOT available on Fire Exit Hardware.

Handing: Field Reversible

Door Thickness: Available for 1-3/4" to 2-1/4" thick

Device: Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation

Base Material: The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.

Chassis: Investment Cast Steel, Zinc Dichromated.

Top Latchbolt: Stainless Steel, Deadlocking, 3/4" throw

Bottom Bolt: Steel plated, independent action 5/8" throw, with adjustment range to suit 3/4" door undercut.

Top Strike: No. S300 Surface applied, Investment Cast Stainless Steel, Black Powder Coated furnished standard.

Bottom Strike: No. S460, Flush mounted, Steel, Black Powder Coated.

Touchbar Height: 39-15/16" from floor standard. May be varied as situation dictates.

Reversible: Reversible for all functions and Trims. Standard packaging RHRB.

UL Listed: Panic and Fire Exit Hardware. Conforms to UL10C and UBC 7-2.

ANSI/BHMA: Devices are BHMA certified for ANSI 156.3, Grade 1.

Cylinders: Rim Type, not furnished standard.

Finishes: 605, 606, 612, 613, 622, 625, 626W, 628, 630, 690

Retrofit Applications: The 2200 and FL2200 Series Devices are designed to retrofit into other manufacturers’ mounting hole locations. 1700 Series Pull Trim and 4900 Series Lever Trim may also be factory set for these applications by specifying prefix “R” (e.g. 2208 R4908A).

Precision 22 Series – Reversible
The 22 Series Device is designed to be compatible with many manufacturers’ Access Control exterior trim. The device incorporates a center driven cam to receive the tailpiece of the access control product. The tailpiece rotation required to retract the latch is a minimum of 50 degrees. Consult factory for details.

Electrical Options
ELR - Electric Latch Retraction
The ELR option provides remote Latch Retraction of exit devices. Continuous duty solenoids retract the Latchbolt(s) for momentary unlatching or continuously for dogging. The ELR feature can be interfaced with automatic door operators, card readers, push buttons, toggle/key switches, and fire alarm systems.

Model: PHI Precision 2201 628, 2201 605, 2201 606, 2201 612, 2201 613, 2201 625, 2201 630
